Vehicle Exploded View - APRILIA SR 50 Carb My 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

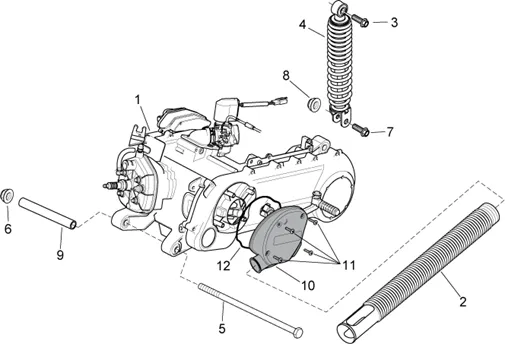

Moteur : 29.27 MOTEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_29.27.PNG)
1 |
CM1439035 - MOTEUR 50 2T E2 H2O APRILIA "SR" X RIC. More informationQuantity required : 1 |
||||||
|
2 |
AP8220704-MANICOTTO ASP. VARIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
3 |
SCREW FLANGE TH (10X35) OEM PIAGGIO COMMON A LA RANGE-AP8152318 More informationQuantity required : 1 |
||||||
|
4 |
REAR SHOCK ABSORBER OEM PIAGGIO APRILIA 50 SR 2003 > 2012-668009 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/2/img/50872.jpg)
5 |
SCREW (M10X205) OEM APRILIA COMMON A LA RANGE-AP8150412 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
7 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 1 |
||||||
|
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
9 |
AP8221347 - DISTANZIALE MOTORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/7/img/66617.jpg)
10 |
COVER VENTILATION CASING DE TRANSMISSION OEM PIAGGIO 50 NRG/GILERA 50 RUNNER-482404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/8/img/97088.jpg)
11 |
SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8150515 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/8/img/66618.jpg)
12 |
GASKET COVER DE VARIATOR OEM 50 2T COMMON A LA RANGE 2003 > 2017-482432 More informationQuantity required : 1 |
