Vehicle Exploded View - APRILIA SR 50 Carb My 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

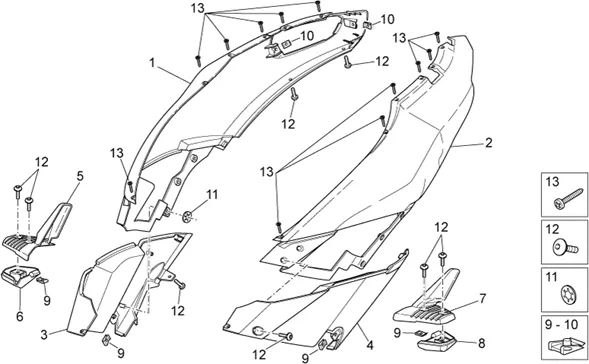

Chassis : 28.13 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_28.13.PNG)
1 |
2H000326000H4 - TABLIER D. More informationQuantity required : 1 |
||||||
|
1 |
AP8179912-TAIL CAR. D RED More informationQuantity required : 1 |
||||||
|
1 |
AP8268315 - ½-QUEUE CAR. D BANC More informationQuantity required : 1 |
||||||
|
1 |
AP8268582-BODY PANEL REAR RIGHT BLACK More informationQuantity required : 1 |
||||||
|
2 |
2H000327000H4 - TABLIER G. More informationQuantity required : 1 |
||||||
|
2 |
AP8179913 - ½-QUEUE CAR. G ROUGE More informationQuantity required : 1 |
||||||
|
2 |
AP8268316-TAIL CAR. G WHITE More informationQuantity required : 1 |
||||||
|
2 |
AP8268285 - SEMISCUDO ANT.DX V.NERO APR. More informationQuantity required : 1 |
||||||
|
2 |
AP8268285 - SEMISCUDO ANT.DX V.NERO APR. More informationQuantity required : 1 |
||||||
|
3 |
AP8269259-BRACKET RIGHT More informationQuantity required : 1 |
||||||
|
4 |
AP8269260-BRACKET LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/5/7/0/img/60570.jpg)
5 |
COVER OF REST-FEET PASSENGER RIGHT OEM PIAGGIO APRILIA 50 SR H2O 2018 >-AP8269399 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/5/5/5/img/155555.jpg)
6 |
FOND OF REST FOOT RIGHT OEM APRILIA 50 SR H2O 2004 >-1B005129 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/5/7/1/img/60571.jpg)
7 |
COVER OF REST-FEET PASSENGER LEFT OEM PIAGGIO APRILIA 50 SR H2O 2018 >-AP8269400 More informationQuantity required : 1 |
||||||
|
8 |
AP8269402-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
10 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
11 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
12 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 12 |
