Vehicle Exploded View - APRILIA SR 50 Carb My 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

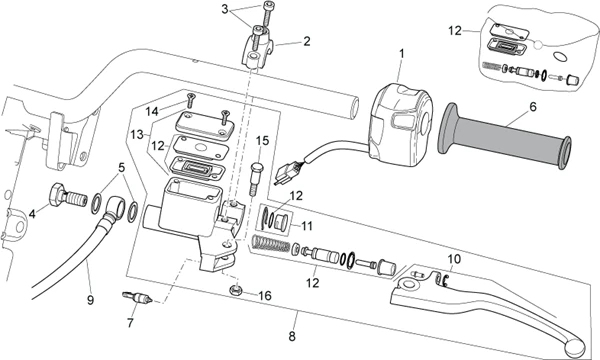

Chassis : 28.18 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_28.18.PNG)
1 |
AP8224619 - DEVIOLUCI SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/1/4/img/57514.jpg)
1 |
COMMODO/SWITCH LEFT OEM APRILIA 50 SR 2004 >-AP8224639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/4/img/72224.jpg)
2 |
HALF CLAMP GRIP LEFT OEM PIAGGIO 50 SR H2O APRILIA 2004 >-AP8213580 More informationQuantity required : 1 |
||||||
|
3 |
AP8213582-SCREW CAPPELLOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
4 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/7/5/img/71375.jpg)
6 |
PAIRE GRIP RUBBER OEM PIAGGIO 50 SR APRILIA 2004 >-AP8118699 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
7 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
8 |
CM081208 - HYDRAULIC BRAKE PUMP More informationQuantity required : 1 |
||||||
|
9 |
665996-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
9 |
HOSE/FLEXIBLE/HOSE OF BRAKE REAR OEM PIAGGIO APRILIA 50 SR H2O 2004 > 2009-AP8213548 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/6/img/67436.jpg)
10 |
LEVER BRAKE MAXI SCOOTER OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X8 2004 > 2006, X-EVO 2007 >/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO LEFT/RIGHT (HENG-TONG)-600475 More informationQuantity required : 1 |
||||||
|
11 |
AP8213455-HUBLOT PUMP BRAKE More informationQuantity required : 1 |
||||||
|
12 |
AP8213593 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
|
13 |
AP8213595 - COPERCHIO SERBATOIO More informationQuantity required : 1 |
||||||
|
14 |
AP8213583-SCREW COVER PUMP More informationQuantity required : 2 |
||||||
|
15 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
16 |
AP8213585-DADO More informationQuantity required : 1 |
