Vehicle Exploded View - APRILIA SR 50 Carb My 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

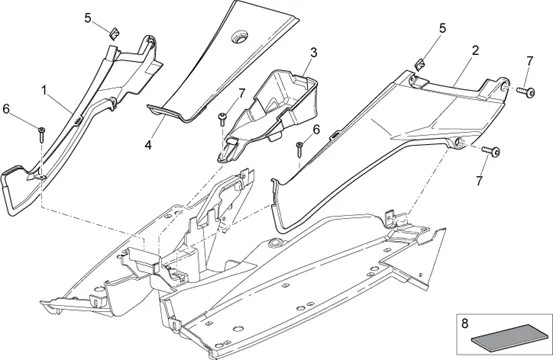

Chassis : 28.10 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_28.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/5/6/6/img/60566.jpg)
1 |
TUNNEL STEP FOOT RIGHT OEM PIAGGIO 50 SR APRILIA 2014 >-AP8269395 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/5/5/3/img/155553.jpg)
2 |
TUNNEL STEP FOOT LEFT OEM PIAGGIO 50 SR APRILIA 2014 >-1B005147 More informationQuantity required : 1 |
||||||
|
2 |
TUNNEL STEP FOOT LEFT OEM PIAGGIO 50 SR APRILIA 2014 >-1B005147 More informationQuantity required : 1 |
||||||
3 |
AP8268046-VANO PORTATTREZZI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/5/6/8/img/60568.jpg)
4 |
COVER COVER CENTRAL STEP FOOT OEM APRILIA 50 SR H2O 2018 >-AP8269397 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
6 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 5 |
||||||
|
8 |
AP8117040-EPONGE ADHÉS. BLACK More informationQuantity required : 1 |
