Vehicle Exploded View - APRILIA SR 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

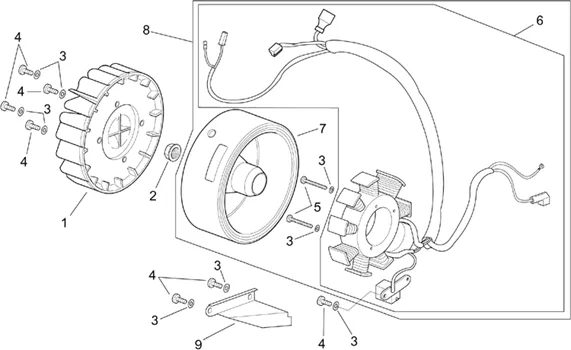

Moteur : 29.49 MAGNÉT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_29.49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/6/img/66396.jpg)
1 |
431110 - VENTILATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
2 |
NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
3 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
4 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
5 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/9/img/66259.jpg)
6 |
IGNITION STATOR "PIAGGIO GENUINE PART" 125 TYPHOON, SKIPPER 1998>2004/APRILIA 125 SR 1999>2001 -292973- More informationQuantity required : 1 |
||||||
7 |
292972 - ROTOR More informationQuantity required : 1 |
||||||
|
8 |
Volant magnétique compl. |
||||||
|
9 |
431952 - EQUERRE More informationQuantity required : 1 |
