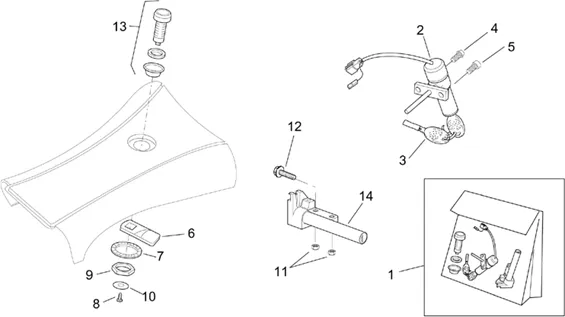

Chassis : 28.44 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_28.44.PNG)
1 |
AP8102975 - KIT SERRURE; More informationQuantity required : 1 |
||||||
|
2 |
MAIN SWITCH-STEERING LOCK "PIAGGIO GENUINE PART" APRILIA 125 SR 1999>2001 -AP8124686- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
3 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
4 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
5 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/7/5/img/55375.jpg)
6 |
LEVER OUVERTURE HATCH FUEL OEM PIAGGIO APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX-AP8201620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
7 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
8 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
10 |
WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
12 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 2 |
||||||
|
13 |
KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609 More informationQuantity required : 1 |
||||||
|
14 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
