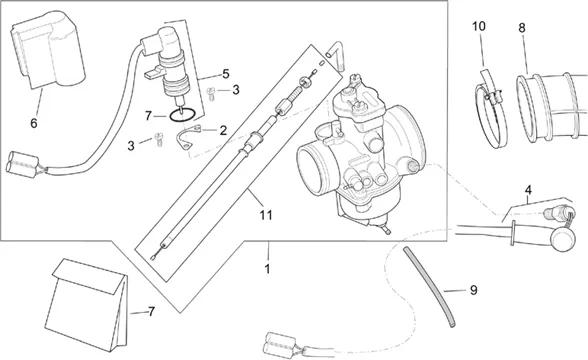

Moteur : 29.30 CARBURATEUR DELL'ORTO I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_29.30.PNG)
1 |
Carburateur cpl. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/1/img/66201.jpg)
2 |
PLATE DE MAINTIEN STARTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-288863 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
3 |
SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/0/img/68860.jpg)
4 |
RESISTOR OF CARBURETTOR OEM PIAGGIO 50-125 FLY 2005 > 2011, VESPA LX 2005 >, VESPA-S 2007 >, LIBERTY 2006 > 2016-82961R6 More informationQuantity required : 1 |
||||||
|
5 |
Soupape starter complète |
||||||
|
6 |
AP8550212 - COUVERCLE STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/3/img/66973.jpg)
7 |
POCHETTE/KIT JOINTS OF CARBURETTOR OEM PIAGGIO 125 VESPA ET4 2000 > 2005-498412 More informationQuantity required : 1 |
||||||
|
8 |
432147 - RACCORD More informationQuantity required : 1 |
||||||
|
9 |
CM112001-TUBE VIDANGE CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
|
11 |
CM061002 - TRANSMISSION More informationQuantity required : 1 |
