Vehicle Exploded View - APRILIA SR 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

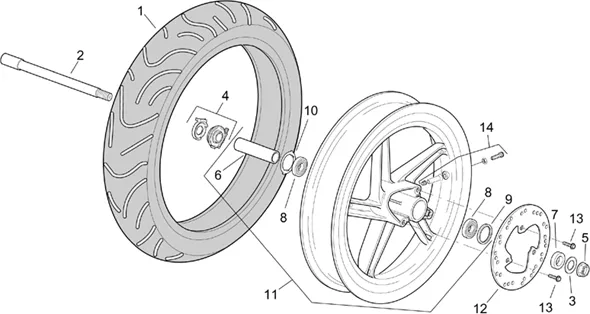

Chassis : 28.35 ROUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_28.35.PNG)
2 |
AP8225271-WHEEL SPINDLE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
3 |
WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/1/0/img/55410.jpg)
4 |
AP8201925 - RENVOI COMPTEUR KM More informationQuantity required : 1 |
||||||
|
5 |
AP8150373-NUT AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
6 |
AP8225323-SPACER INT. WHEEL AV. More informationQuantity required : 1 |
||||||
|
7 |
AP8221119-SPACER FRONT WHEEL More informationQuantity required : 1 |
||||||
|
8 |
AP8225148 - ROULEMENT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/4/img/47744.jpg)
9 |
BUSH (40X50X4) D'ETANCHEITE FRONT WHEEL OEM PIAGGIO APRILIA 125-250 LEONARDO, 50-125 MOJITO, 650 PEGASO, 50 RALLY, 125-250 SCARABEO-AP8125743 More informationQuantity required : 1 |
||||||
|
10 |
AP8120865-ENTRA? NEMENT More informationQuantity required : 1 |
||||||
|
11 |
AP8208445 - ROUE AV NUE ARG. More informationQuantity required : 1 |
||||||
|
11 |
AP8208705 - ROUE AV.NUE GRISE; More informationQuantity required : 1 |
||||||
|
11 |
AP8208708 - ROUE AV NUE BLEU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/0/3/img/56403.jpg)
12 |
BRAKE DISC OEM PIAGGIO 50 SCARABEO, RALLY, SR, GULLIVER, 125 LEONARDO, MOJITO-AP8213231 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
13 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
14 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
