Vehicle Exploded View - APRILIA SR 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

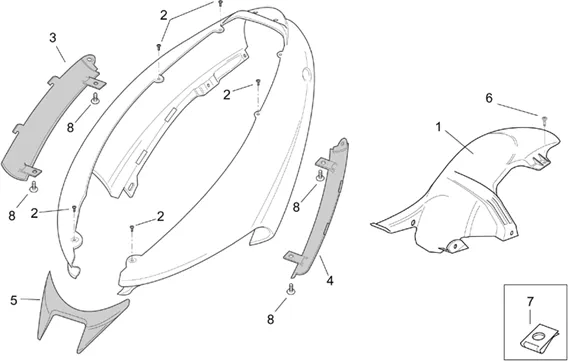

Chassis : 28.18 CARROSSERIE ARRIÉRE - FLANC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/6/img/67126.jpg)
1 |
REAR MUDGUARD OEM PIAGGIO GILERA 125 RUNNER 2T/APRILIA 125 SR 1999 > 2001-576058 More informationQuantity required : 1 |
||||||
1 |
Garde-boue arrière gris; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
2 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
|
3 |
Flanc D, gris; |
||||||
|
3 |
Flanc dte gris.Tit.; |
||||||
|
4 |
AP8248663 - FLANC GCHE GRIS.TIT.; More informationQuantity required : 1 |
||||||
|
4 |
Flanc G, gris; |
||||||
|
5 |
AP8220468 - CAOUTCHOUC CHARNIERE SELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/3/img/71843.jpg)
6 |
SCREW PARKER (4. 8X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
8 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
