Vehicle Exploded View - APRILIA SR 150 1999-2001 APRILIA

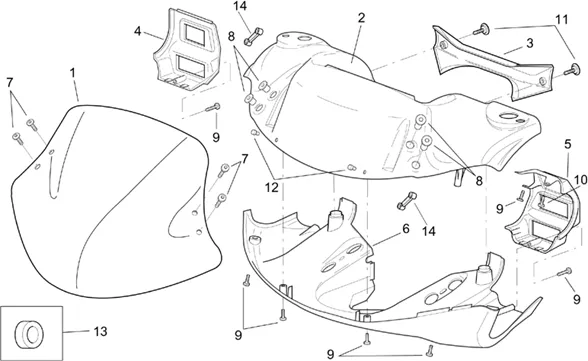

Chassis : 28.07 CARROSSERIE AV. - COUPOLE
Carrosserie av. - Coupole
Search
AP8238345 - VITRE COUPOLE BLEUE;

1
P2R reference P2R reference 58217
Maker reference Maker reference AP8238345

AP8238345 - VITRE COUPOLE BLEUE;

More information

Quantity required : 1

AP8249698 - VITRE COUPOLE BLEUE;

1
P2R reference P2R reference 58834
Maker reference Maker reference AP8249698

AP8249698 - VITRE COUPOLE BLEUE;

More information

Quantity required : 1

Tableau bord argent a.;

2
P2R reference P2R reference
Maker reference Maker reference AP8139706

Tableau bord argent a.;

Tableau bord bleu nuit;

2
P2R reference P2R reference
Maker reference Maker reference AP8148401

Tableau bord bleu nuit;

Tableau bord vert fl.;

2
P2R reference P2R reference
Maker reference Maker reference AP8148411

Tableau bord vert fl.;

AP8148499 - TABLEAU BORD ROUGE FLUO;

2
P2R reference P2R reference 50348
Maker reference Maker reference AP8148499

AP8148499 - TABLEAU BORD ROUGE FLUO;

More information

Quantity required : 1

Tableau bord rouge fluo;

2
P2R reference P2R reference
Maker reference Maker reference AP8148504

Tableau bord rouge fluo;

AP8149300 - TABLEAU BORD HOT RED;

2
P2R reference P2R reference 50607
Maker reference Maker reference AP8149300

AP8149300 - TABLEAU BORD HOT RED;

More information

Quantity required : 1

AP8149301 - TABLEAU BORD BLEU ELECT.;

2
P2R reference P2R reference 50608
Maker reference Maker reference AP8149301

AP8149301 - TABLEAU BORD BLEU ELECT.;

More information

Quantity required : 1

AP8148379 - SUPPORT PEINT NOIRE

2
P2R reference P2R reference 50317
Maker reference Maker reference AP8148379

AP8148379 - SUPPORT PEINT NOIRE

More information

Quantity required : 1

AP8258091 - T DE B. GRIS NIK.;

2
P2R reference P2R reference 59025
Maker reference Maker reference AP8258091

AP8258091 - T DE B. GRIS NIK.;

More information

Quantity required : 1

AP8248147 - PLAQ.GUID.GRIS MET.;

3
P2R reference P2R reference 58517
Maker reference Maker reference AP8248147

AP8248147-PLAQ. GUID. GREY MET.

More information

Quantity required : 1

AP8249879 - PLAQUE GUIDON NOIR MET.

3
P2R reference P2R reference 58898
Maker reference Maker reference AP8249879

AP8249879-PLATE HANDLEBAR BLACK MET.

More information

Quantity required : 1

AP8139702 - SUP.POUSSOIRS D N;

4
P2R reference P2R reference 49381
Maker reference Maker reference AP8139702

AP8139702-SUP. POUSSOIRS D N

More information

Quantity required : 1

AP8139703 - SUPPORT BOUTONS G;

5
P2R reference P2R reference 49382
Maker reference Maker reference AP8139703

AP8139703 - SUPPORT BOUTONS G;

More information

Quantity required : 1

AP8148380 - BASE T?TE, GRISE;

6
P2R reference P2R reference 50318
Maker reference Maker reference AP8148380

AP8148380 - BASE T?TE, GRISE;

More information

Quantity required : 1

AP8248653 - BASE T?TE N.METAL

6
P2R reference P2R reference 58614
Maker reference Maker reference AP8248653

AP8248653-BASE T? TE N. METAL *

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269

7
P2R reference P2R reference 71936
Maker reference Maker reference AP8152269

SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269

More information

Quantity required : 4

AP8225369 - VIS

7
P2R reference P2R reference 57594
Maker reference Maker reference AP8225369

AP8225369-SCREW

More information

Quantity required : 4

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

8
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 4

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

9
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 8

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

10
P2R reference P2R reference 71878
Maker reference Maker reference AP8150420

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

More information

Quantity required : 4

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

11
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

11
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 2

RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488

12
P2R reference P2R reference 72286
Maker reference Maker reference AP8220488

RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488

More information

Quantity required : 2

AP8148454 - FERMETURE TABLEAU BORD;

13
P2R reference P2R reference 50340
Maker reference Maker reference AP8148454

AP8148454 - FERMETURE TABLEAU BORD;

More information

Quantity required : 1

AP8225367 - ENTRETOISE

14
P2R reference P2R reference 57593
Maker reference Maker reference AP8225367

AP8225367 - ENTRETOISE

More information

Quantity required : 2
