Vehicle Exploded View - APRILIA SR 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

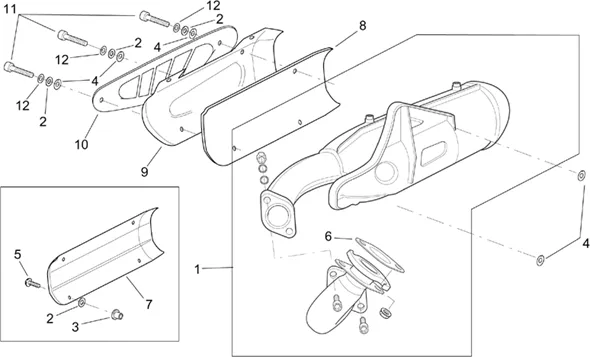

Chassis : 28.34 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_28.34.PNG)
1 |
POT ECHAPPEMENT |
||||||
|
1 |
Pot d'échappement |
||||||
|
1 |
AP8119572 - POT CATALYTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
2 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
3 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 4 |
||||||
|
4 |
AP8150483-WASHER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
||||||
|
6 |
AP8119574 - JOINT POT ECHAP./CYLINDRE More informationQuantity required : 1 |
||||||
|
7 |
AP8119510 - PROTECTION POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
8 |
AP8117165-PANEL ISOLANT More informationQuantity required : 1 |
||||||
|
9 |
Protection pot échap. noir |
||||||
|
10 |
AP8119570 - PROTECTION POT ECHAP. GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/1/img/50961.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8152171 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
12 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150177 More informationQuantity required : 4 |
