Vehicle Exploded View - APRILIA SPORT CITY ONE 50 4T 2V E2 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

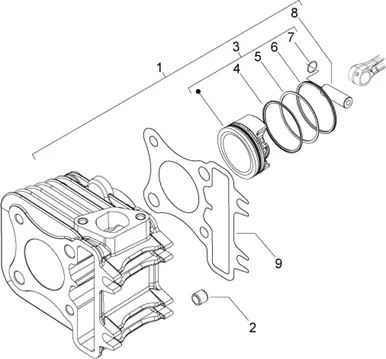

Moteur : 29.32 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_29.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/9/img/70979.jpg)
1 |
CYLINDER PISTON OEM PIAGGIO 50 4T LIBERTY, ZIP EURO 2 2006 > 2013-969603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
2 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/8/0/img/70980.jpg)
3 |
PISTON (CAT-A) "PIAGGIO GENUINE PART" 50 ZIP 2000 4 STROKE, FLY 2006> 4 STROKE, LIBERTY 2006> 4 STROKE, VESPA LX 2006> 4 STROKE, PRIMAVERA 2013> 4 STROKE, SPRINT 2014> 4 STROKE/APRILIA 50 SCARABEO 2002> 4 STROKE, SPORT-CITY 2008> 4 STROKE -969604500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/8/1/img/70981.jpg)
3 |
GROUP PISTON (CAT-B) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-9696045002 More informationQuantity required : 1 |
||||||
3 |
GROUP PISTON (CAT-C) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-9696045003 More informationQuantity required : 1 |
||||||
|
3 |
GROUP PISTON (CAT-D) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-9696045004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/6/img/70936.jpg)
4 |
PISTON RING DE LAMP OEM PIAGGIO 50 ZIP 2000 4T, FLY 2006 > 4T, LIBERTY 2006 > 4T, VESPA LX 2006 > 4T, PRIMAVERA 2013 > 4T, SPRINT 2014 > 4T/APRILIA 50 SCARABEO 2002 > 4T, SPORT-CITY 2008 > 4T-969215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/7/img/70937.jpg)
5 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO 50 ZIP 2000 4T, FLY 2006 > 4T, LIBERTY 2006 > 4T, VESPA LX 2006 > 4T, PRIMAVERA 2013 > 4T, SPRINT 2014 > 4T/APRILIA 50 SCARABEO 2002 > 4T, SPORT-CITY 2008 > 4T-969216 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/8/img/70938.jpg)
6 |
PISTON RING RACLEUR OEM PIAGGIO 50 ZIP 2000 4T, FLY 2006 > 4T, LIBERTY 2006 > 4T, VESPA LX 2006 > 4T, PRIMAVERA 2013 > 4T, SPRINT 2014 > 4T/APRILIA 50 SCARABEO 2002 > 4T, SPORT-CITY 2008 > 4T-969217 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/4/img/70934.jpg)
7 |
CLIPS/CIRCLIPS DE PISTON DIAM 13 (FORME EN C) OEM PIAGGIO COMMON A LA RANGE-969213 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/5/img/70935.jpg)
8 |
SHAFT OF PISTON OEM PIAGGIO 50 4T ZIP, SPRINT, PRIMAVERA-969214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/3/img/70943.jpg)
9 |
CYLINDER BASE GASKET DE CYLINDER 0, 5MM OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-969230 More informationQuantity required : 1 |
