Vehicle Exploded View - APRILIA SPORT CITY ONE 50 4T 2V E2 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

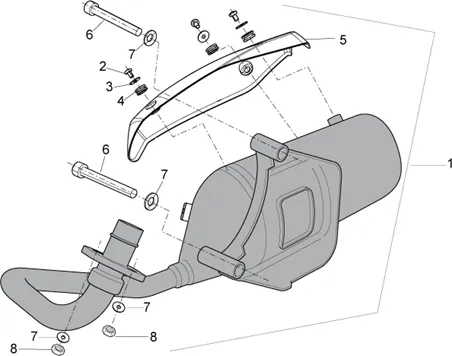

Chassis : 28.22 GROUPE D’ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_28.22.PNG)
1 |
856445 - POT D'ECHAPPEMENT CPL. More informationQuantity required : 1 |
||||||
|
1 |
890330 - POT D'ECHAPPEMENT CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
2 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
3 |
WASHER PLATE (5X16) SHEET METAL EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE-827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
4 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/7/5/img/69675.jpg)
5 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO APRILIA 50 SPORT-CITY ONE 2008 > 2011, 125 SPORT-CITY 2008 > 2011-853127 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/4/img/69354.jpg)
6 |
SCREW BTR (8X65) MOUNTING EXHAUST SCOOT OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP/GILERA 50 STALKER, DNA-845590 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
7 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/7/img/69067.jpg)
8 |
NUT D'ECHAPPEMENT COTE CYLINDER OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-833494 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
9 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 2 |
