Vehicle Exploded View - APRILIA SPORT CITY ONE 50 4T 2V E2 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

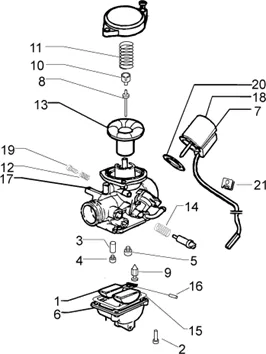

Moteur : 29.20 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_29.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/0/img/68780.jpg)
1 |
FLOTTEUR OEM PIAGGIO 50 FLY, VESPA LX, LIBERTY, ZIP 4T-828832 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/9/1/img/73191.jpg)
2 |
TUBE D'EMULTION OEM PIAGGIO 50 FLY 4T, VESPA LX 4T, LIBERTY 4T, VESPA-S 4T, ZIP 4T 2013 <-CM142203 More informationQuantity required : 1 |
||||||
3 |
828825-EMULSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/9/img/73189.jpg)
4 |
GICLEUR MAXI 75 OEM PIAGGIO-CM142102 More informationQuantity required : 1 |
||||||
|
4 |
CM142103-HAND OPEN FACE 78 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/9/3/img/73193.jpg)
5 |
GIGLEUR DE RALENTI OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM142302 More informationQuantity required : 1 |
||||||
|
6 |
CM142805-CUVE CARBURETTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/0/8/img/73208.jpg)
7 |
STARTER OEM PIAGGIO 50 LIBERTY 2006 > 4T, FLY 2006 > 4T, VESPA LX 2006 > 4T, ZIP 2006 > 4T, VESPA-S 25 KM/H, PRIMAVERA 25 KM/H, SPRINT 25 KM/H/APRILIA 50 SCARABEO 2002 > 4T, SPORT CITY-ONE-CM142912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/9/9/img/73199.jpg)
8 |
CARBURETTOR NEEDLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T 2015 <-CM142705 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
9 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/6/img/68776.jpg)
10 |
AGRAPHE AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-828822 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/9/6/img/73196.jpg)
11 |
CM142402-SPRING * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/7/img/68787.JPG)
12 |
SPRING DE SCREW OEM PIAGGIO COMMON A LA RANGE-828841 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/6/img/73246.jpg)
13 |
BOISSEAU/MEMBRANE OF CARBURETTOR OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, VESPA S 4T/APRILIA 50 SPORT-CITY 4T, SCARABEO 4T-CM146601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/9/img/68779.jpg)
14 |
SPRING SCREW OF RALENTI OEM PIAGGIO 50 FLY 4T-828830 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/9/img/66909.jpg)
15 |
GASKET OF CUVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-100 CC 4T-497038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/1/img/68781.jpg)
16 |
SHAFT OF FLOTEUR KEIHIN CVK18 OEM PIAGGIO COMMON A LA RANGE-828833 More informationQuantity required : 1 |
||||||
|
17 |
828839-PLATE More informationQuantity required : 1 |
||||||
|
18 |
CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844 More informationQuantity required : 1 |
||||||
|
19 |
828840-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.jpg)
20 |
PLATE OF CARBURETTOR OEM 50-125-200 COMMON A LA RANGE 2016 <-2828843 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/1/img/69541.jpg)
21 |
CLAMP SERRAGE OEM PIAGGIO COMMON A LA RANGE-847778 More informationQuantity required : 1 |
