Vehicle Exploded View - APRILIA SPORT CITY ONE 50 4T 2V E2 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

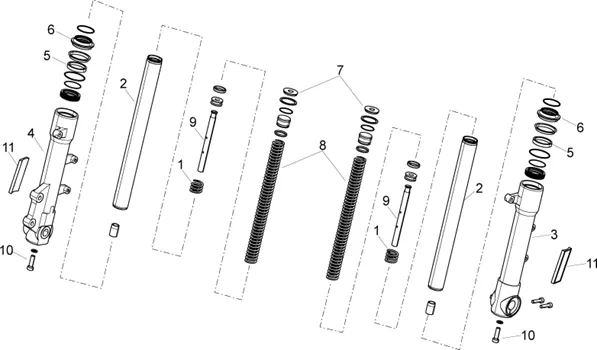

Chassis : 28.04 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_28.04.PNG)
1 |
858322 - RESSORT More informationQuantity required : 2 |
||||||
|
2 |
858319 - FOURREAU FOURCHE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/9/9/img/68399.jpg)
3 |
FORK LEG - RIGHT "PIAGGIO GENUINE PART" 50 TYPHOON 2011/APRILIA 50 SR MOTARD 2011>, SPORT-CITY -666261 More informationQuantity required : 1 |
||||||
|
3 |
858317 - FOURREAU D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/0/0/img/68400.jpg)
4 |
FORK LEG - LEFT "PIAGGIO GENUINE PART" 50 TYPHOON 2011/APRILIA 50 SR MOTARD 2011>, SPORT-CITY -666262 More informationQuantity required : 1 |
||||||
|
4 |
858316 - FOURREAU G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/1/1/img/68111.jpg)
5 |
FORK OIL SEAL (32X44X10.5) "PIAGGIO GENUINE PART" 50-125 FLY, 125 LIBERTY/APRILIA 125 SR 2011, 50-125 SPORT-CITY ONE -649952 More informationQuantity required : 2 |
||||||
|
6 |
649951 - PARE POUSSIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/4/4/img/67444.jpg)
7 |
600495 - BOUCHON More informationQuantity required : 2 |
||||||
|
8 |
858320 - RESSORT A FOURCHE More informationQuantity required : 1 |
||||||
|
9 |
858321 - PISTON More informationQuantity required : 2 |
||||||
|
10 |
601401 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/6/7/img/68367.jpg)
11 |
REFLECTOR - ON FORK "PIAGGIO GENUINE PART" 50 TYPHOON, FLY/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -664045 More informationQuantity required : 1 |
