Vehicle Exploded View - APRILIA SPORT CITY ONE 50 4T 2V E2 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

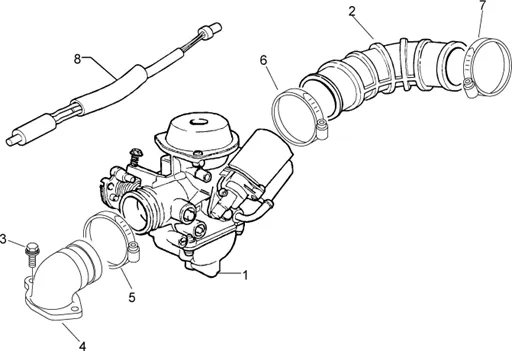

Moteur : 29.19 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_29.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/7/img/73187.jpg)
1 |
CARBURETTOR "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, ZIP 4 STROKE, VESPA LX 4 STROKE, VESPA S 4 STROKE/APRILIA 50 SPORT-CITY 4 STROKE, SCARABEO 4 STROKE -CM141914 More informationQuantity required : 1 |
||||||
1 |
CM141911 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/2/img/69352.jpg)
2 |
845489 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
3 |
031091 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/4/img/69374.jpg)
4 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE 2006>, FLY 4 STROKE 2005>, LIBERTY 4 STROKE 2006>, VESPA LX 4 STROKE 2005>/APRILIA 50 SPORT-CITY 2008> -845946 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
5 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
7 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/1/img/67261.jpg)
8 |
CARB RESISTOR MODULE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -582619 More informationQuantity required : 1 |
