Vehicle Exploded View - APRILIA SPORT CITY ONE 50 4T 2V E2 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

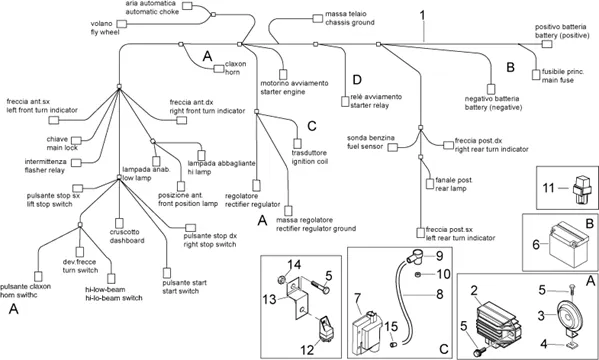

Chassis : 28.28 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_28.28.PNG)
1 |
858123 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
1 |
890300 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
1 |
893817 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/4/img/67944.jpg)
2 |
REGULATEUR DE TENSION OEM PIAGGIO 50 TYPHOON, NRG 2018 >, VESPA PRIMAVERA 4T 2013 >, SPRINT 4T 2013 >/GILERA SMT 2018 >/DERBI SENDA 2018 >/APRILIA RS4, SX, RX 2018 >-641788 More informationQuantity required : 1 |
||||||
|
3 |
AVERTISSEUR OEM PIAGGIO 50 TYPHOON, FLY, NRG, 125-250-300 VESPA GTS-58093R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
5 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
|
5 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
6 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
||||||
|
7 |
639238 - DISPOSITIF More informationQuantity required : 1 |
||||||
|
7 |
CM268002-DISPOSITIF More informationQuantity required : 1 |
||||||
|
7 |
639975-CENTRALINA ELECT. More informationQuantity required : 1 |
||||||
|
7 |
858181 - DISPOSITIF DU DEMARR. EL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
8 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
9 |
ANTIPARASITE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-969348 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/0/img/68750.jpg)
10 |
GUIDE CABLE HT OEM PIAGGIO COMMON A LA RANGE-828339 More informationQuantity required : 1 |
||||||
|
11 |
CENTRE CLIGNOTANTE OEM PIAGGIO APRILIA 50-125 SPORT-CITY ONE 2008 > 2011-858544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
12 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
|
13 |
582042-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
14 |
241937 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
15 |
CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571 More informationQuantity required : 1 |
