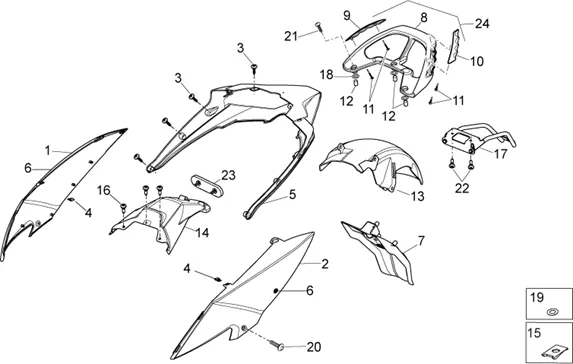

Chassis : 28.13 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_28.13.PNG)
1 |
856448-'-TAIL CAR. More informationQuantity required : 1 |
||||||
|
1 |
8564480090-TAIL D, BLACK More informationQuantity required : 1 |
||||||
|
1 |
85644800DE - QUEUE D, BLEU More informationQuantity required : 1 |
||||||
|
1 |
85644800F2 - QUEUE D, GRIS More informationQuantity required : 1 |
||||||
|
1 |
85644800GH - QUEUE D, JAUNE More informationQuantity required : 1 |
||||||
|
1 |
85644800XB1 - QUEUE D, BLANC More informationQuantity required : 1 |
||||||
|
1 |
85644800XV4 - ½-QUEUE CAR. More informationQuantity required : 1 |
||||||
|
2 |
856449-'-TAIL CAR. More informationQuantity required : 1 |
||||||
|
2 |
8564490090 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
2 |
85644900DE - QUEUE G, BLEU More informationQuantity required : 1 |
||||||
|
2 |
85644900F2 - QUEUE G, GRISE More informationQuantity required : 1 |
||||||
|
2 |
85644900GH - QUEUE G, JAUNE More informationQuantity required : 1 |
||||||
|
2 |
85644900XB1-TAIL G, WHITE More informationQuantity required : 1 |
||||||
|
2 |
85644900XV4 - ½-QUEUE CAR. G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/1/3/img/69713.jpg)
5 |
COVER REAR OEM PIAGGIO APRILIA 50-125 SPORT-CITY ONE-856439 More informationQuantity required : 1 |
||||||
|
5 |
85643900XH1-COVER REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/0/3/2/img/41032.jpg)
6 |
DECAL- REAR COWL "PIAGGIO GENUINE PART" PIAGGIO APRILIA 125 SPORT-CITY ONE -860696 More informationQuantity required : 2 |
||||||
|
7 |
890432 - COUVERCLE ARRIERE More informationQuantity required : 1 |
||||||
|
8 |
852837-GRIP PASS. More informationQuantity required : 1 |
||||||
|
8 |
85283700F2-GRIP PASS. GRISE More informationQuantity required : 1 |
||||||
|
9 |
856457 - PROFIL More informationQuantity required : 1 |
||||||
|
9 |
85645700XH1 - COUVERCLE More informationQuantity required : 1 |
||||||
|
10 |
856458-SILENT-BLOC More informationQuantity required : 1 |
||||||
|
10 |
85645800XH1 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
11 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
||||||
|
12 |
856459-BUSH More informationQuantity required : 3 |
||||||
|
13 |
853096-GUARD-MUD More informationQuantity required : 1 |
||||||
|
13 |
85309600XH1 - GARDE-BOUE ARRIERE GRIS More informationQuantity required : 1 |
||||||
|
14 |
853070-MUD FLAP ANTI-ECLABOUSSURES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/6/6/img/69666.jpg)
14 |
85307000XH1 - JUPE ANTI-ECL.AR GR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
16 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/7/3/img/69673.jpg)
17 |
BRACKET DE MUD FLAP REAR OEM PIAGGIO 50 TYPHOON 2010 >/APRILIA 50 SPORT-CITY ONE 2008 >-853100 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
18 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
19 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
||||||
|
20 |
860536-SCREW FLANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
21 |
SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
22 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
23 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5 More informationQuantity required : 1 |
||||||
|
24 |
8564600090 - POIGNEE More informationQuantity required : 1 |
