Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2010-2013 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

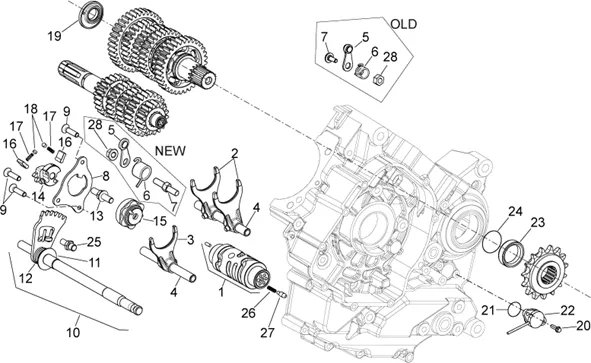

Moteur : 29.47 SELECTEUR BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/861/Shiver_750_E3_ABS-NOABS_2010-2013_(APAC_EMEA)_29.47.png)
1 |
849693-TAMBOUR D'EMBR. More informationQuantity required : 1 |
||||||
|
2 |
849360-FOURCHETTE More informationQuantity required : 2 |
||||||
|
3 |
849468 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
4 |
974084-ROD OF POUSSEE CLUTCH More informationQuantity required : 2 |
||||||
|
5 |
872154 - LEVIER More informationQuantity required : 1 |
||||||
|
6 |
871669 - RESSORT More informationQuantity required : 1 |
||||||
|
7 |
B013928-ROD FILETEE More informationQuantity required : 1 |
||||||
|
7 |
879129-SCREW More informationQuantity required : 1 |
||||||
|
8 |
871649-PLATE BUTEE More informationQuantity required : 1 |
||||||
|
9 |
878867-SCREW More informationQuantity required : 3 |
||||||
|
10 |
B0144375-SHAFT More informationQuantity required : 1 |
||||||
|
11 |
971718-WASHER More informationQuantity required : 1 |
||||||
|
12 |
971719-SPRING More informationQuantity required : 1 |
||||||
|
13 |
878870-SCREW SPECIALE More informationQuantity required : 1 |
||||||
|
14 |
872560-SELECTOR SPROKET More informationQuantity required : 1 |
||||||
|
15 |
B017809-TAMBOUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/3/3/img/97633.jpg)
16 |
CLIQUET BOX OF VITESSES OEM APRILIA 750-900-1200 CAPONORD, SHIVER, DORSODURO-AP9150069 More informationQuantity required : 2 |
||||||
|
17 |
AP9150064-MOLLA PER PUNTALE SALT More informationQuantity required : 2 |
||||||
|
18 |
AP9150070-PUNTALE PER SALTARELLO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/2/0/img/41520.jpg)
19 |
WHEEL PHONIQUE/SENSOR OF SPEED OEM APRILIA 750 SHIVER, DORSODURO-878742 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
20 |
SCREW TORX (5X12) OEM PIAGGIO COMMON A LA RANGE-B014598 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/8/5/1/img/97851.jpg)
21 |
O-RING (23. 52X1. 78) SENSOR OEM APRILIA 750 DORSODURO, SHIVER-AP9150479 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/8/0/img/38280.jpg)
22 |
SENSOR OF PRESSION OIL OEM PIAGGIO 750 DORSODURO, SHIVER APRILIA-58188R More informationQuantity required : 1 |
||||||
|
23 |
974558-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/1/2/img/41312.jpg)
24 |
O-RING SORTIE DE BOX OEM APRILIA CAPONORD, DORSODURO, SHIVER, 660 RS-871901 More informationQuantity required : 1 |
||||||
|
25 |
974130-PIVOT More informationQuantity required : 1 |
||||||
|
26 |
873695-SPRING More informationQuantity required : 1 |
||||||
|
27 |
AP9150003-PUNTALE PER SEGNALATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
28 |
NUT FLANGE AUTOBLOQUANT (M6) OEM PIAGGIO COMMON A LA RANGE-59565 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/5/img/63805.jpg)
28 |
WASHER PLATE OEM PIAGGIO COMMON A LA RANGE-006175 More informationQuantity required : 1 |
