Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2010-2013 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

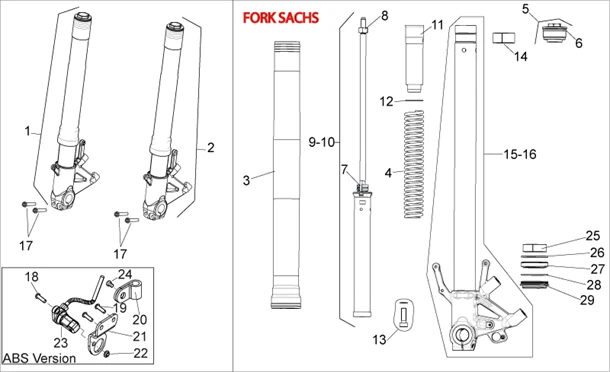

Cadre : 28.56 FRONT FORK III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/861/Shiver_750_E3_ABS-NOABS_2010-2013_(APAC_EMEA)_28.56.png)
1 |
898070 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
898071-ROD LEFT More informationQuantity required : 1 |
||||||
|
3 |
898513-FOURREAU More informationQuantity required : 2 |
||||||
|
4 |
898514-SPRING More informationQuantity required : 2 |
||||||
|
5 |
898515-GR. CAP CPL. More informationQuantity required : 2 |
||||||
|
6 |
897335-O-RING More informationQuantity required : 2 |
||||||
|
7 |
898522-BUSH SEEGER More informationQuantity required : 2 |
||||||
|
8 |
898516 - ECROU More informationQuantity required : 2 |
||||||
|
9 |
898518-ELEM. POMPAGE CPL G More informationQuantity required : 1 |
||||||
|
10 |
898519-ELEM. POMPAGE CPL D More informationQuantity required : 1 |
||||||
|
11 |
898517-HOSE PRECHARGE More informationQuantity required : 1 |
||||||
|
12 |
897336-WASHER More informationQuantity required : 2 |
||||||
|
13 |
898794 - TIGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/5/img/42725.jpg)
14 |
BUSH/BUSH DE GUIDAGE DE FORK OEM APRILIA COMMON A LA RANGE MOTO-897341 More informationQuantity required : 2 |
||||||
|
15 |
898520-FOURREAU FORK More informationQuantity required : 1 |
||||||
|
16 |
898521-FOURREAU FORK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/5/img/71955.jpg)
17 |
SCREW FLANGE TH (8X60) OEM PIAGGIO COMMON A LA RANGE-AP8152293 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
18 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
19 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 2 |
||||||
|
20 |
859777-PLATE More informationQuantity required : 1 |
||||||
|
21 |
856557-PLATE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
22 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
23 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
23 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
24 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/6/img/42726.jpg)
25 |
BUSH OF FRICTION FORK OEM APRILIA COMMON A LA RANGE-897342 More informationQuantity required : 2 |
||||||
|
26 |
897343-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/8/img/42728.jpg)
27 |
OIL SEAL DE FORK OEM PIAGGIO APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD-897344 More informationQuantity required : 2 |
||||||
|
28 |
897339-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/1/img/42721.jpg)
29 |
PROTECTOR-POUSSIERE DE FORK OEM PIAGGIO APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD-897337 More informationQuantity required : 2 |
