Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2010-2013 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

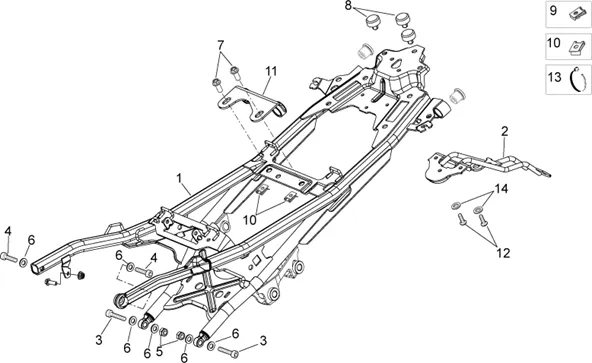

Cadre : 28.03 ACCROCHE-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/861/Shiver_750_E3_ABS-NOABS_2010-2013_(APAC_EMEA)_28.03.png)
1 |
894486-ACCROCHE-SEAT More informationQuantity required : 1 |
||||||
|
2 |
851686-BRACKET More informationQuantity required : 1 |
||||||
|
3 |
890638 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
4 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 2 |
||||||
|
5 |
AP8152350-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
6 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
7 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
8 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
10 |
NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268 More informationQuantity required : 4 |
||||||
|
11 |
851789-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
13 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
14 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 1 |
