Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2010-2013 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

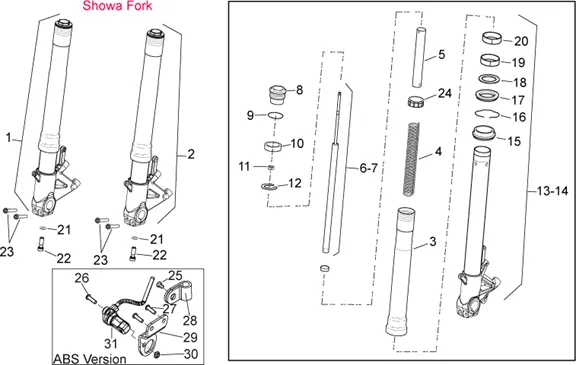

Cadre : 28.07 FOURCHE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/861/Shiver_750_E3_ABS-NOABS_2010-2013_(APAC_EMEA)_28.07.png)
1 |
859982 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
859983 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
856029 - PROTECTION More informationQuantity required : 2 |
||||||
|
4 |
856030-SPRING More informationQuantity required : 2 |
||||||
|
5 |
856549-HOSE More informationQuantity required : 2 |
||||||
|
6 |
856245-ELEM. POMPAGE CPL More informationQuantity required : 2 |
||||||
|
7 |
856032-ELEM. POMPAGE CPL More informationQuantity required : 2 |
||||||
|
8 |
856033 - BOUCHON More informationQuantity required : 2 |
||||||
|
9 |
856034 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
10 |
856035 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
11 |
856036-NUT More informationQuantity required : 2 |
||||||
|
12 |
856037 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
13 |
856038 - TIGE+PORTE-ROUE D More informationQuantity required : 1 |
||||||
|
14 |
859983 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/0/4/img/40004.jpg)
15 |
PROTECTOR POUSSIERE FORK OEM APRILIA 750 DORSODURO, SHIVER-856040 More informationQuantity required : 2 |
||||||
|
16 |
AP8123806 - BAGUE SEEGER; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/0/5/img/40005.jpg)
17 |
OIL SEAL DE FORK OEM PIAGGIO APRILIA 750 SHIVER 2007 > 2016, NA-MANA 2007 > 2016-856042 More informationQuantity required : 2 |
||||||
|
18 |
856043-CIRCLIPS More informationQuantity required : 2 |
||||||
|
19 |
856044 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/0/7/img/40007.jpg)
20 |
856045 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/0/8/img/40008.jpg)
21 |
WASHER CUIVRE13X8X1 OEM APRILIA COMMON A LA RANGE-856046 More informationQuantity required : 2 |
||||||
|
22 |
856047-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
23 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 4 |
||||||
|
24 |
856317-CUVETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
25 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
26 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
27 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 2 |
||||||
|
28 |
859777-PLATE More informationQuantity required : 1 |
||||||
|
29 |
856557-PLATE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
30 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
31 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
31 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
