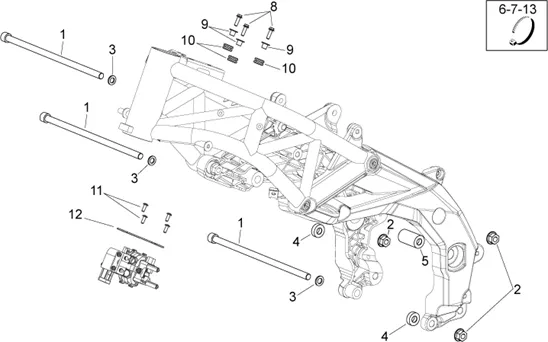

Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2010-2013 (APAC EMEA) APRILIA

Cadre : 28.02 CHASSIS II
Chassis II
Search
851784 - TIRANT PRISE MOTEUR;

1
P2R reference P2R reference 39277
Maker reference Maker reference 851784

851784-TIRANT PRISE ENGINE

More information

Quantity required : 3

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

2
P2R reference P2R reference 66103
Maker reference Maker reference 271740

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

More information

Quantity required : 3

WASHER PLATE (13X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8150101

3
P2R reference P2R reference 50837
Maker reference Maker reference AP8150101

WASHER PLATE (13X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8150101

More information

Quantity required : 3

853036 - ENTRETOISE

4
P2R reference P2R reference 39660
Maker reference Maker reference 853036

853036-SPACER

More information

Quantity required : 2

853035 - ENTRETOISE

5
P2R reference P2R reference 39659
Maker reference Maker reference 853035

853035-SPACER

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657

6
P2R reference P2R reference 71411
Maker reference Maker reference AP8120657

HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657

More information

Quantity required : 3

AP8102386 - FASCETTA IN NYLON NERA

7
P2R reference P2R reference 45158
Maker reference Maker reference AP8102386

AP8102386-FASCETTA IN NYLON NERA

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

8
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

More information

Quantity required : 3

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

9
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 3

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

10
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 3

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

11
P2R reference P2R reference 71897
Maker reference Maker reference AP8150509

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

More information

Quantity required : 4

853213 - SUPPORT

12
P2R reference P2R reference 39704
Maker reference Maker reference 853213

853213-BRACKET

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422

13
P2R reference P2R reference 71395
Maker reference Maker reference AP8120422

HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422

More information

Quantity required : 2
