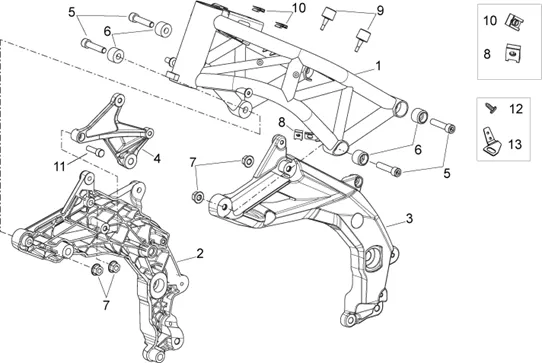

Cadre : 28.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/861/Shiver_750_E3_ABS-NOABS_2010-2013_(APAC_EMEA)_28.01.png)
1 |
89449300XEB - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
89449300XR8-FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/2/img/39122.jpg)
2 |
SIDE PANEL/HALF FRAME RIGHT BLACK OEM APRILIA CAPONORD, DORSODURO, SHIVER-85153600XNB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/5/img/39125.jpg)
3 |
SIDE PANEL/HALF FRAME LEFT BLACK OEM APRILIA CAPONORD, DORSODURO, SHIVER-85153700XNB More informationQuantity required : 1 |
||||||
|
4 |
851541-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/8/2/img/39482.jpg)
5 |
SCREW BTR (12X52) MOUNTING DE FRAME OEM PIAGGIO APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO-852165 More informationQuantity required : 4 |
||||||
|
6 |
853037-BUSH More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
8 |
NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/9/img/71739.jpg)
9 |
BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
11 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
12 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
|
13 |
856668-PLATE More informationQuantity required : 1 |
