Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2010-2013 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

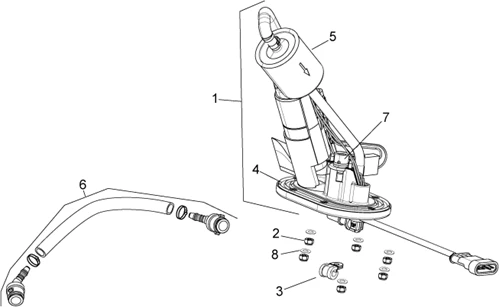

Cadre : 28.14 POMPE ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/861/Shiver_750_E3_ABS-NOABS_2010-2013_(APAC_EMEA)_28.14.png)
1 |
898259-PUMP FUEL CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
2 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 6 |
||||||
|
3 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/8/img/73408.jpg)
4 |
GASKET OF FUEL PUMP OEM PIAGGIO APRILIA 750-1100-1200 DORSODURO, 750-900 SHIVER/MOTO-GUZZI 1400 CALIFORNIA, AUDACE, 750 BREVA, NEVADA, V11-GU01107490 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/6/img/73406.jpg)
5 |
FUEL FILTER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-GU01106090 More informationQuantity required : 1 |
||||||
|
6 |
875995 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
7 |
898468-DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
8 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 6 |
