Vehicle Exploded View - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

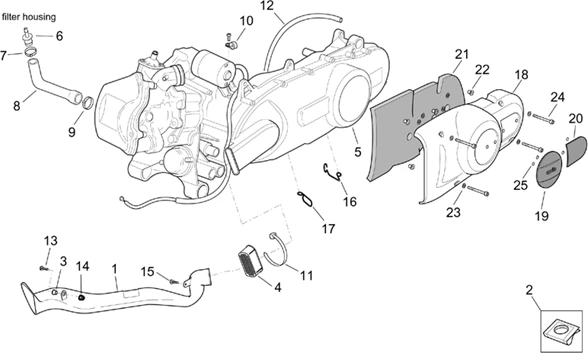

Moteur : 29.40 DESSIN D'ENSEMBLE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_29.40.PNG)
1 |
AP8139249 - PRISE D'AIR VARIATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
3 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 1 |
||||||
|
4 |
AP8168045 - GRILLE PRISE AIR VARIAT.; More informationQuantity required : 1 |
||||||
|
5 |
Moteur |
||||||
|
5 |
Moteur complet 120 |
||||||
|
5 |
Moteur avec refroid.à eau |
||||||
|
5 |
Moteur |
||||||
|
5 |
|
||||||
|
5 |
|
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/8/img/71188.jpg)
6 |
FITTING A DEUX VOIES OEM APRILIA COMMON A LA RANGE-AP8102576 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
7 |
AP8201169-CLAMP CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/0/6/img/46706.jpg)
8 |
OIL BREATHER HOSE "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2001, SCARABEO 1999>2006 -AP8120977- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/5/img/55355.jpg)
9 |
CLAMP CLIC 290X8. 9 OEM APRILIA COMMON A LA RANGE-AP8201409 More informationQuantity required : 1 |
||||||
|
10 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
12 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
15 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
|
16 |
AP8121889-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
17 |
AP8120802 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
18 |
AP8158477 - COUVRE CARTER; More informationQuantity required : 1 |
||||||
|
18 |
AP8168213 - COUVRE CARTER; More informationQuantity required : 1 |
||||||
|
19 |
AP8144547-SPINDLE AV. More informationQuantity required : 1 |
||||||
|
20 |
Axe ar. |
||||||
|
21 |
AP8117202 - ISOLANT; More informationQuantity required : 1 |
||||||
|
22 |
"Douille en ""T""" |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
23 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
24 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
25 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 4 |
