Vehicle Exploded View - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

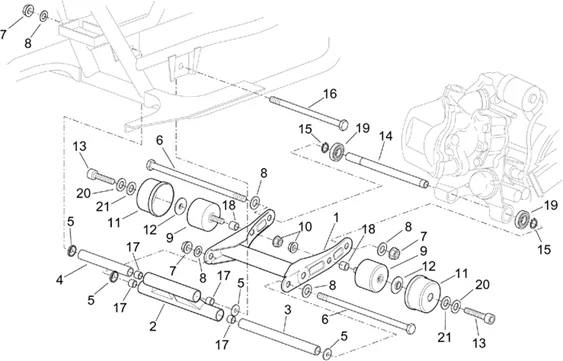

Chassis : 28.07 BIELLETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.07.PNG)
1 |
AP8146111 - BIELLETTE FIXATION MOTEUR; More informationQuantity required : 1 |
||||||
|
2 |
AP8146113 - BIELLETTE FIXATION CHASSIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8121286-BUSH BIELLETTE More informationQuantity required : 1 |
||||||
|
4 |
AP8121287-BUSH BIELLETTE More informationQuantity required : 1 |
||||||
|
5 |
AP8203520 - RONDELLE More informationQuantity required : 4 |
||||||
|
6 |
AP8221160-PIVOT BRACKET ENGINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
8 |
WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018 More informationQuantity required : 5 |
||||||
|
9 |
Silentbloc bielle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 2 |
||||||
|
11 |
AP8121931 - PROT.FIN COURSE BIELL.; More informationQuantity required : 2 |
||||||
|
12 |
AP8121214 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
13 |
B063938-SCREW TCEI M10X20 More informationQuantity required : 2 |
||||||
|
14 |
AP8121503 - TUBE ENVELOPPE MOTEUR More informationQuantity required : 1 |
||||||
|
14 |
AP8121954 - TUBE ENVELOPPE MOTEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/4/1/img/55741.jpg)
15 |
AP8206233 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 2 |
||||||
|
16 |
AP8121285 - VIS More informationQuantity required : 1 |
||||||
|
17 |
AP8121311-BUSH GLISSEMENT More informationQuantity required : 4 |
||||||
|
18 |
AP8121218-SPACER More informationQuantity required : 2 |
||||||
|
19 |
AP0232621 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
20 |
WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
21 |
WASHER PLATE (10. 5X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8152176 More informationQuantity required : 2 |
