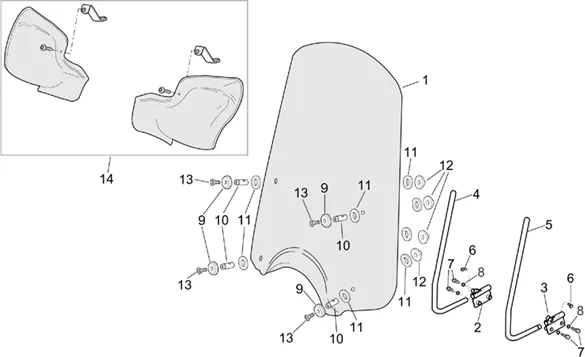

Chassis : 28.11 CARROSSERIE AV. - PROT-MAIN II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.11.PNG)
1 |
AP8791072 - PARE-BRISE More informationQuantity required : 1 |
||||||
|
2 |
AP8701045 - SUPPORT DROITE More informationQuantity required : 1 |
||||||
|
3 |
AP8701047 - SUPPORT GAUCHE More informationQuantity required : 1 |
||||||
|
4 |
AP8701046 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
5 |
AP8701044 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
7 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
8 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 4 |
||||||
|
9 |
AP8700114 - RONDELLE More informationQuantity required : 4 |
||||||
|
10 |
AP8706057 - DOUILLE More informationQuantity required : 4 |
||||||
|
11 |
Caoutchouc |
||||||
|
12 |
AP8700113-WASHER NYLON More informationQuantity required : 4 |
||||||
|
13 |
AP8700116 - VIS More informationQuantity required : 4 |
||||||
|
14 |
AP8791081 - PAIRE PARE MAIN SCAR 125 More informationQuantity required : 1 |
