Vehicle Exploded View - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

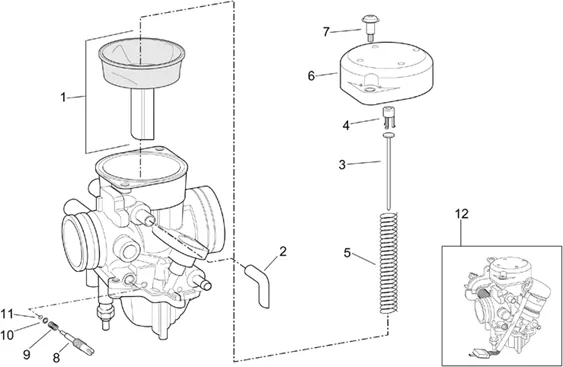

Moteur : 29.37 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_29.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/9/9/img/45599.jpg)
1 |
CARB DIAPHRAGM "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO WITH ROTAX ENGINE -AP8106661- More informationQuantity required : 1 |
||||||
2 |
AP8144265-HOSE RUBBER More informationQuantity required : 1 |
||||||
|
3 |
AP8106659 - POINTEAU; More informationQuantity required : 1 |
||||||
|
4 |
AP8106660-ARRET POINTEAU * More informationQuantity required : 1 |
||||||
|
5 |
AP8121392 - RESSORT; More informationQuantity required : 1 |
||||||
|
6 |
AP8106658 - COUVERCLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/9/6/img/50996.jpg)
7 |
AP8152373 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/5/img/73275.jpg)
8 |
SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 SCARABEO 4 STROKE -CM151701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/0/2/img/46802.jpg)
9 |
SPRING DE CABURATEUR OEM APRILIA 125-200 SCARABEO (OTAX) 1999 > 2004-AP8121393 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/9/7/img/50997.jpg)
10 |
WASHER OF CARBURETTOR OEM PIAGGIO 125 SCARABEO ROTAX 1999 > 2004-AP8152375 More informationQuantity required : 1 |
||||||
|
11 |
Joint torique; |
||||||
|
12 |
AP8106553 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
12 |
Carburateur |
||||||
|
12 |
AP8106804 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
12 |
AP8106859 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
12 |
AP8106938 - CARBURATORE More informationQuantity required : 1 |
||||||
|
12 |
Carburateur |
