Vehicle Exploded View - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

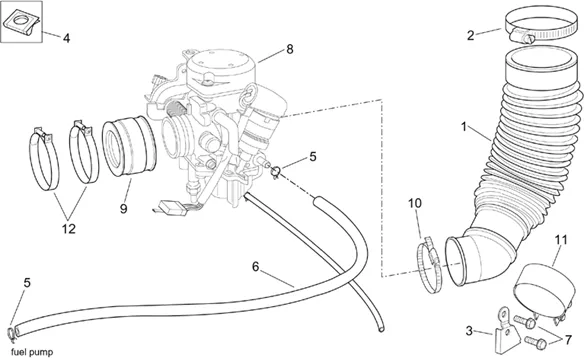

Moteur : 29.36 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_29.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/1/2/img/49612.jpg)
1 |
SLEEVE D'ASPIRATION OEM PIAGGIO APRILIA 125 SCARABEO 1999 > 2004 ENGINE ROTAX-AP8144112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/9/img/71389.jpg)
2 |
AP8120246-CLAMP More informationQuantity required : 1 |
||||||
3 |
AP8134571 - ETRIER FIXE MANCHON; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
5 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
6 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
7 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
|
8 |
AP8106553 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
8 |
Carburateur |
||||||
|
8 |
AP8106804 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
8 |
AP8106859 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
8 |
AP8106938 - CARBURATORE More informationQuantity required : 1 |
||||||
|
8 |
Carburateur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/0/8/6/img/44086.jpg)
9 |
CARB MANIFOLD "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO 1999>2004 MOTEUR ROTAX -AP0267132 More informationQuantity required : 1 |
||||||
|
10 |
AP8102700 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
AP8104045 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
AP0251052 - COLLIER AVEC ENTRETOISE More informationQuantity required : 2 |
