Vehicle Exploded View - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

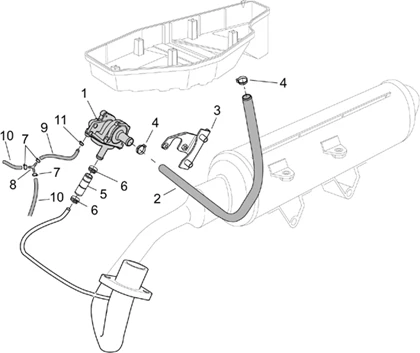

Chassis : 28.35 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.35.PNG)
1 |
AP8106940 - SOUPAPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/3/img/71423.jpg)
2 |
HOSE OEM PIAGGIO 125-150-200 SCARABEO ROTAX 1999 > 2004-AP8120956 More informationQuantity required : 1 |
||||||
|
3 |
AP0251470 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
4 |
CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349 More informationQuantity required : 2 |
||||||
|
5 |
AP8144657 - TUBO ARIA SECONDARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
6 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 2 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/6/img/71756.jpg)
8 |
FITTING EN T OEM PIAGGIO COMMON A LA RANGE-AP8144303 More informationQuantity required : 1 |
||||||
|
9 |
896570-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
10 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
11 |
CLAMP HOSE (D8) OEM PIAGGIO COMMON A LA RANGE-AP8120179 More informationQuantity required : 1 |
