Vehicle Exploded View - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

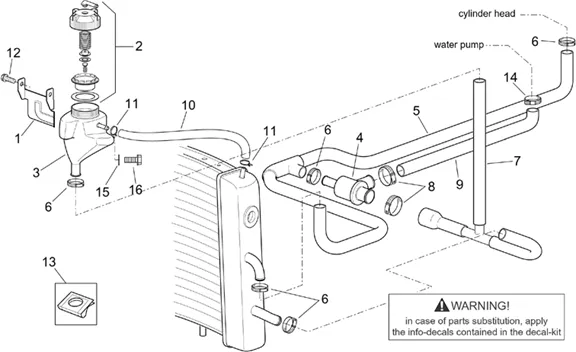

Chassis : 28.30 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.30.PNG)
1 |
AP8134487 - SUP. VASE D'EXPANS.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/7/img/55357.jpg)
2 |
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463 More informationQuantity required : 1 |
||||||
|
3 |
AP8139255 - VASE D'EXPANSION; More informationQuantity required : 1 |
||||||
|
4 |
AP8102614-GROUP THERMOSTAT * More informationQuantity required : 1 |
||||||
|
5 |
AP8144115-TUBE DE CYLINDER HEAD RADIATOR More informationQuantity required : 1 |
||||||
|
6 |
CLAMP HOSE 17-25 OEM PIAGGIO COMMON A LA RANGE-AP8102732 More informationQuantity required : 5 |
||||||
|
7 |
AP8144116 - TUYAU SOUPAP-RADIAT. More informationQuantity required : 1 |
||||||
|
8 |
654184-CLAMP More informationQuantity required : 2 |
||||||
|
9 |
AP8144120 - TUBE SOUP.POMPE-MOT More informationQuantity required : 1 |
||||||
|
10 |
AP8144506-HOSE RENIFLARD RADIATOR More informationQuantity required : 1 |
||||||
|
10 |
AP8220450-HOSE A TEXTURE EN RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
11 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
11 |
CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
12 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.jpg)
14 |
CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
15 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
16 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
