Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

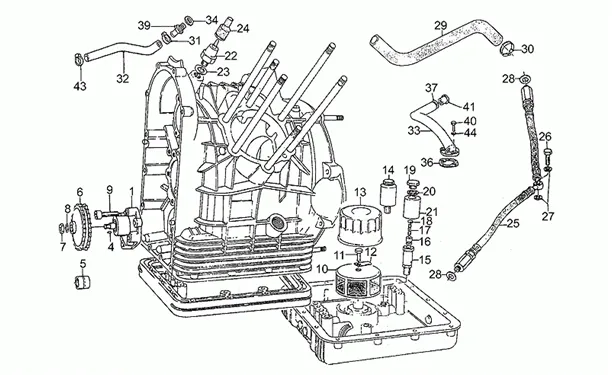

Moteur : 34.45 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_34.45.PNG)
1 |
GU30146400 - POMPE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/3/6/img/130636.jpg)
1 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30147700 More informationQuantity required : 1 |
||||||
|
4 |
GU13148300 - CLAVETTE More informationQuantity required : 1 |
||||||
|
5 |
GU92252210-BEARING A ROULEAUX More informationQuantity required : 1 |
||||||
|
6 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30147700 More informationQuantity required : 1 |
||||||
|
6 |
GU13147701 - ENGRENAGE POMPE HUILE More informationQuantity required : 1 |
||||||
|
7 |
GU92602308-NUT More informationQuantity required : 1 |
||||||
|
8 |
GU95120085-WASHER ELASTIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
9 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-GU98622430 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/7/img/129217.jpg)
10 |
CREPINE INTERNE/OIL FILTER OEM PIAGGIO MOTO GUZZI 1000 CALIFORNIA 1983 >, 850 LE MANS 1981, 1000 LE MANS 1983 >, 1000 SP3 1989 >, 850 T5 1985 >-GU14152200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
11 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/0/img/132760.jpg)
12 |
PLATE MAINTIEN CREPINE OIL FILTER OEM MOTO GUZZI-GU95187006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/3/1/4/2/img/103142.jpg)
13 |
OIL FILTER "PIAGGIO GENUINE PART" MOTO GUZZI 1000 CALIFORNIA 1983>, 850 LE MANS 1981 ,1000 LE MANS 1983>, 1000 SP3 1989>, 850 T5 1985> -GU14153000- More informationQuantity required : 1 |
||||||
|
14 |
GU03158200 - VALVOLA PRESS.OLIO CPL. More informationQuantity required : 1 |
||||||
|
15 |
GU10158701-BODY VALVE More informationQuantity required : 1 |
||||||
|
16 |
GU12150900 - PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/0/img/132640.JPG)
17 |
SPRING DE VALVE OEM MOTO GUZZI COMMON A LA RANGE 2001 <-GU94321072 More informationQuantity required : 1 |
||||||
|
18 |
GU12150700 - BOUCHON More informationQuantity required : 1 |
||||||
|
19 |
GU12159000 - BOUCHON DE CLAPET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/3/img/132733.JPG)
20 |
WASHER 14, 5X20X1 OEM MOTO GUZZI COMMON A LA RANGE-GU95100523 More informationQuantity required : 2 |
||||||
|
21 |
GU14158800 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/9/4/img/129394.jpg)
22 |
MANOMETRE/DETECTEUR PRESSION OIL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU17768750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
23 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 1 |
||||||
|
24 |
GU12717600 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/8/6/img/101486.jpg)
25 |
HOSE CANALISATION OIL OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2005, 1000 LE-MANS 1983 > 1994, 1000 QUOTA 1992 > 2002, 1000 SP 1983 > 1994, 1100 SPORT 1994 > 1999, 1100 V11 1999 > 2005-GU01153602 More informationQuantity required : 1 |
||||||
|
26 |
GU95990037-SCREW More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
27 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/5/0/img/129950.jpg)
28 |
GASKET (10. 2X14X1. 5) OEM MOTO GUZZI COMMON A LA RANGE-GU25656102 More informationQuantity required : 2 |
||||||
|
29 |
HOSE DE VALVE RENIFLARD 12, 5X7, 8 5/16 " OEM MOTO GUZZI COMMON A LA RANGE-GU00823956080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/2/img/130132_20251023145529.jpg)
30 |
OIL HOSE CLAMP "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU28157850 More informationQuantity required : 1 |
||||||
|
31 |
GU93305017-CLAMP More informationQuantity required : 2 |
||||||
|
32 |
HOSE DE VALVE RENIFLARD 12, 5X7, 8 5/16 " OEM MOTO GUZZI COMMON A LA RANGE-GU00823956080 More informationQuantity required : 1 |
||||||
|
33 |
GU01007200 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
34 |
GASKET (10. 2X14X1. 5) OEM MOTO GUZZI COMMON A LA RANGE-GU25656102 More informationQuantity required : 2 |
||||||
|
36 |
GU12007600-GASKET More informationQuantity required : 1 |
||||||
|
37 |
GU65061300-JONC D ARRET More informationQuantity required : 1 |
||||||
|
39 |
GU28153960-FITTING More informationQuantity required : 2 |
||||||
|
40 |
GU98054318-SCREW More informationQuantity required : 2 |
||||||
|
41 |
GU28150560 - SOUPAPE RENIFLARD HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133_20251023145539.jpg)
43 |
CLAMP CLIC (12. 5X8) OEM PIAGGIO COMMON A LA RANGE-GU28157950 More informationQuantity required : 1 |
||||||
|
44 |
CLAMP CLIC (12. 5X8) OEM PIAGGIO COMMON A LA RANGE-GU28157950 More informationQuantity required : 2 |
||||||
|
44 |
GU95120065-WASHER 6, 5X11X2 More informationQuantity required : 2 |
