Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

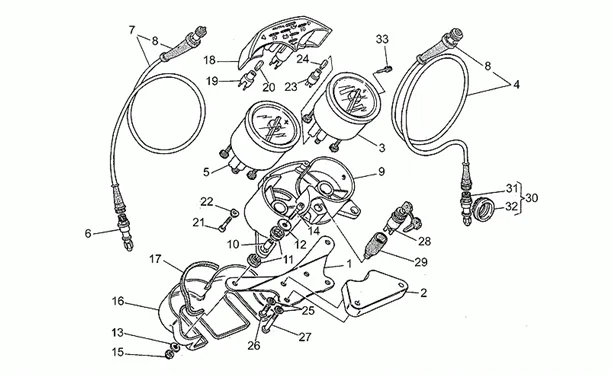

Chassis : 33.05 TABLEAU DE BORD I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.05.PNG)
1 |
|
||||||
|
2 |
SUPPORT |
||||||
|
3 |
GU14761570 - COMPTEUR KILOMETRIQUE MHP More informationQuantity required : 1 |
||||||
|
4 |
GU28760410 - TRANSMISSION TACHYMETRE More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
|
7 |
GU19768100-TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
8 |
GU17762200 - GAINE More informationQuantity required : 2 |
||||||
|
9 |
GU17501570 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
10 |
GU91180721 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
11 |
Silent block |
||||||
|
12 |
GU95090142 - RONDELLE More informationQuantity required : 2 |
||||||
|
13 |
GU95001206 - RONDELLE More informationQuantity required : 2 |
||||||
|
14 |
|
||||||
|
15 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
|
16 |
|
||||||
|
17 |
GU00823932085-PROFILO PVC NERO More informationQuantity required : 1 |
||||||
|
18 |
Support |
||||||
|
19 |
Porte-ampoule |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
20 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 8 |
||||||
|
21 |
|
||||||
|
22 |
GU95021105-WASHER EVENT. More informationQuantity required : 2 |
||||||
|
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
24 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
25 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 4 |
||||||
|
26 |
GU98230816-SCREW More informationQuantity required : 2 |
||||||
|
27 |
Vis |
||||||
|
28 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
||||||
|
29 |
GU19741336 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
GU14762510 - RENVOI Z5/11 More informationQuantity required : 1 |
||||||
|
31 |
|
||||||
|
32 |
|
||||||
|
33 |
GU19762810 - POUSSOIR RAZ More informationQuantity required : 1 |
