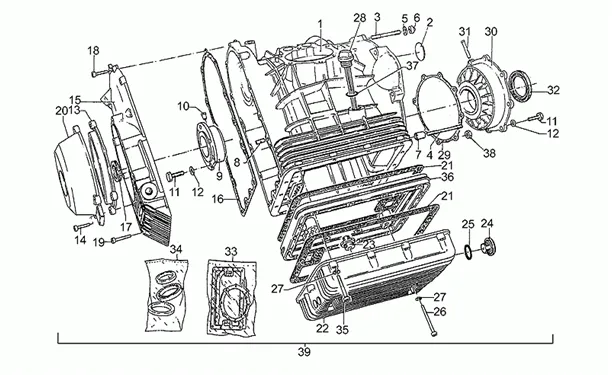

Moteur : 34.36 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_34.36.PNG)
1 |
GU140007655-CASING ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/1/img/129101.jpg)
2 |
GU12003900 - DISQUE More informationQuantity required : 1 |
||||||
|
3 |
GU96508066-SCREW WITHOUT HEAD M8X66 More informationQuantity required : 4 |
||||||
|
4 |
GU96508075-SCREW WITHOUT HEAD M8X75 More informationQuantity required : 2 |
||||||
|
5 |
GU95004208 - RONDELLE More informationQuantity required : 5 |
||||||
|
6 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 6 |
||||||
|
7 |
GU12018900-BUSH D'ACCOUPLEMENT More informationQuantity required : 2 |
||||||
|
8 |
GU95512081-GOUPILLE More informationQuantity required : 2 |
||||||
|
9 |
GU140119005 - FLANC COMPLET More informationQuantity required : 1 |
||||||
|
9 |
GU14011901-FLANGE MIN. 0, 2 MM More informationQuantity required : 1 |
||||||
|
10 |
GU12012200-GOUPILLE More informationQuantity required : 1 |
||||||
|
11 |
GU98054425 - VIS M8X25 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
12 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 14 |
||||||
|
13 |
GU18001150-FLANGE More informationQuantity required : 1 |
||||||
|
14 |
GU98310630 - VIS More informationQuantity required : 4 |
||||||
|
15 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/2/5/img/128525.jpg)
16 |
GASKET OF COVER TIMING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI (ENGINE 2 SOUPAPES)-GU05001231 More informationQuantity required : 1 |
||||||
|
17 |
GU90402038 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
18 |
GU98622325-SCREW M6X25 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
19 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/1/1/img/129411.jpg)
20 |
COVER CENTRA DE CASING DE TIMING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI (ENGINE 2 SOUPAPES)-GU18001650 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/7/6/img/129176.jpg)
21 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO -GU14003600 More informationQuantity required : 2 |
||||||
|
22 |
|
||||||
|
23 |
GU14003800 - RACCORD More informationQuantity required : 1 |
||||||
|
24 |
CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
25 |
O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/6/6/img/132866.jpg)
26 |
GU98052390 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
27 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/7/3/img/130473.jpg)
28 |
JAUGE OIL OEM MOTO GUZZI COMMON A LA RANGE ENGINE 2 SOUPAPES PAR CYLINDER-GU30004910 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/0/img/125500.jpg)
29 |
GASKET OF FLASQUE COTE CLUTCH OEM MOTO-GUZZI COMMON A LA RANGE-GU05011830 More informationQuantity required : 1 |
||||||
|
30 |
GU120114005 - BRIDE COMPLETE More informationQuantity required : 1 |
||||||
|
30 |
GU12011401-FLANGE MIN. 0, 2 MM More informationQuantity required : 1 |
||||||
|
30 |
GU12011402-FLANGE MIN. 0, 4 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/7/img/129107.jpg)
30 |
FLASQUE COTE CLUTCH MIN. 0, 6 MM OEM PIAGGIO MOTO-GUZZI ENSEMBLE DE LA RANGE-GU12011403 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/8/img/129108.jpg)
31 |
PIN FOR REAR BEARING "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12011700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/4/img/125184.jpg)
32 |
GASKET VILLEBREQUIN COTE CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90405367 More informationQuantity required : 1 |
||||||
|
33 |
Joints moteur-série |
||||||
|
34 |
GU17999550 - KIT MOTEUR SPI More informationQuantity required : 1 |
||||||
|
35 |
GU98620355-SCREW M6X60 More informationQuantity required : 14 |
||||||
|
36 |
FLASQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/2/img/132222.jpg)
37 |
O-RING (17, 86X2, 62) OEM MOTO GUZZI COMMON A LA RANGE-GU90706178 More informationQuantity required : 1 |
||||||
|
38 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
39 |
|
