Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

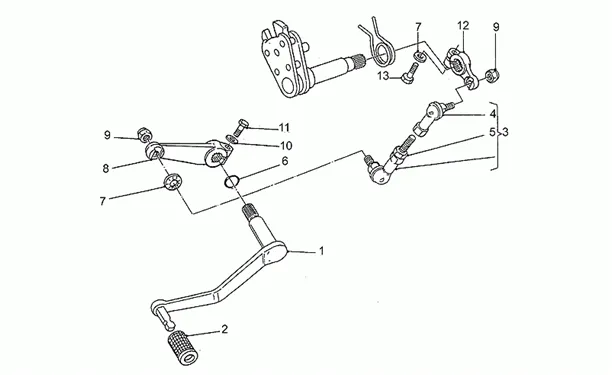

Chassis : 33.43 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.43.PNG)
1 |
GU28250960 - PEDALE DE SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
2 |
RUBBER SELECTEUR OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU14251001 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
4 |
GU30257725 - FOURCHETTE CPL. More informationQuantity required : 1 |
||||||
|
5 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
6 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
7 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
8 |
LEVIER DE BOITE A V. |
||||||
|
9 |
GU92630106-NUT M6X1 More informationQuantity required : 1 |
||||||
|
10 |
Rondelle évent. |
||||||
|
11 |
GU98052325 - VIS More informationQuantity required : 1 |
||||||
|
12 |
GU19258220 - LEVIER COMM.PRESEL. More informationQuantity required : 1 |
||||||
|
13 |
GU98822325 - VIS More informationQuantity required : 1 |
