Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

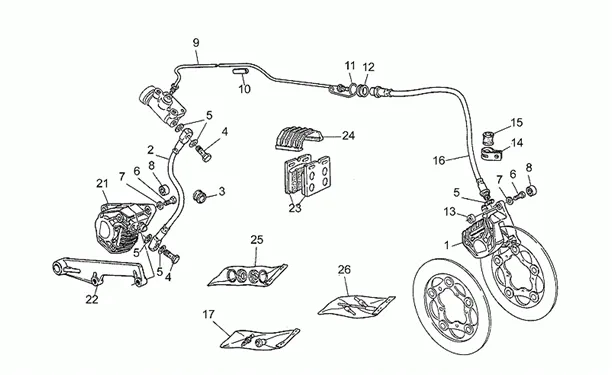

Chassis : 33.17 PINCE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.17.PNG)
1 |
Pince frein |
||||||
|
2 |
GU28657560 - TUYAU FLEXIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/7/img/132367.jpg)
3 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-GU91551131 More informationQuantity required : 1 |
||||||
|
4 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
5 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 4 |
||||||
|
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
7 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 4 |
||||||
|
8 |
Bouchon |
||||||
|
9 |
GU28658760-HOSE RIGIDE More informationQuantity required : 1 |
||||||
|
10 |
GU17659650 - SEGMENT D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
11 |
GU28659700 - OEILLET More informationQuantity required : 1 |
||||||
|
12 |
GU91551120 - BAGUE More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
|
14 |
COLLIER |
||||||
|
15 |
GU91551120 - BAGUE More informationQuantity required : 1 |
||||||
|
16 |
TUYAU FLEXIBLE |
||||||
|
17 |
GU17659260 - PURGE+CAPUCHON More informationQuantity required : 1 |
||||||
|
21 |
GU28653001 - ETRIER AR More informationQuantity required : 1 |
||||||
|
22 |
Support pince frein AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/5/4/img/130254.jpg)
23 |
BRAKE PAD OEM PIAGGIO CALIFORNIA, S, SP MOTO GUZZI-GU28654601 More informationQuantity required : 2 |
||||||
|
24 |
Couvercle pince frein |
||||||
|
25 |
KIT REVISION BRAKE CALIPER OEM PIAGGIO MOTO-GUZZI 850 T3, T5, 1000 LE-MANS, STRADA, 1000-1000 CALIFORNIA-GU14659000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/7/3/img/129273.jpg)
26 |
PINS+CALIPER SPRINGS "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 LE-MANS, SP, STRADA, 850 T3, 1100 CALIFORNIA -GU14659100 More informationQuantity required : 1 |
