Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

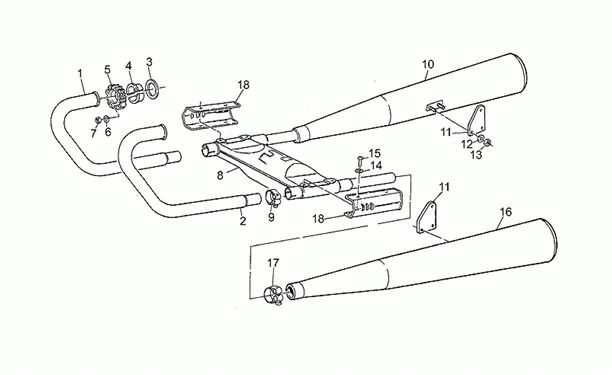

Chassis : 33.41 GROUPE ECHAPP
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.41.PNG)
1 |
Tuyau échappement d. |
||||||
|
2 |
Tuyau échappement gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
GASKET EXHAUST SORTIE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90718370 More informationQuantity required : 2 |
||||||
|
4 |
GU14121200 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
Bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
7 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 4 |
||||||
|
8 |
GU29123938 - CHAMBRE DE DETENDE More informationQuantity required : 1 |
||||||
|
8 |
Chambre de détente C295 |
||||||
|
9 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
10 |
SILENCIEUX |
||||||
|
11 |
PLAQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
12 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 4 |
||||||
|
13 |
GU92630508 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
14 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 4 |
||||||
|
15 |
GU98326009-SCREW More informationQuantity required : 4 |
||||||
|
16 |
SILENCIEUX |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/6/img/129216.jpg)
17 |
CLAMP EXHAUST OEM MOTO-GUZZI 850 T3, 1000 CALIFORNIA, LE MANS, SP-GU14123400 More informationQuantity required : 2 |
||||||
|
18 |
|
