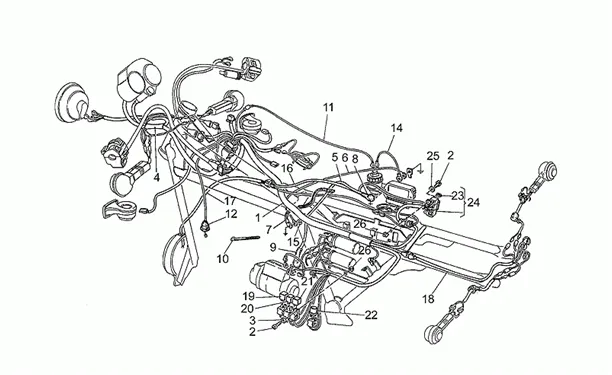

Chassis : 33.13 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.13.PNG)
1 |
|
||||||
|
2 |
Vis |
||||||
|
3 |
GU95004205-WASHER More informationQuantity required : 2 |
||||||
|
4 |
|
||||||
|
4 |
|
||||||
|
5 |
Cable |
||||||
|
6 |
|
||||||
|
7 |
GU28747960-FILS DE MASSE More informationQuantity required : 1 |
||||||
|
8 |
GU23707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
GU19707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
10 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 12 |
||||||
|
11 |
|
||||||
|
12 |
GU12717600 - CAPUCHON More informationQuantity required : 1 |
||||||
|
14 |
GU18759550 - FILS DE MASSE More informationQuantity required : 1 |
||||||
|
15 |
GU92630106-NUT M6X1 More informationQuantity required : 1 |
||||||
|
16 |
GU29726450 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
17 |
GU29725850 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
18 |
Câblage feu AR |
||||||
|
19 |
Relais sirènes |
||||||
|
20 |
Relais démarrage |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/8/img/73458.jpg)
21 |
RELAIS 5 FICHES 12V 40A-15A OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
22 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
23 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 6 |
||||||
|
24 |
Boîte à fusibles |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
25 |
WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059 More informationQuantity required : 2 |
||||||
|
26 |
GU92660501-NUT EN CAGE More informationQuantity required : 4 |
All the exploded views of this vehicle
-
