Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

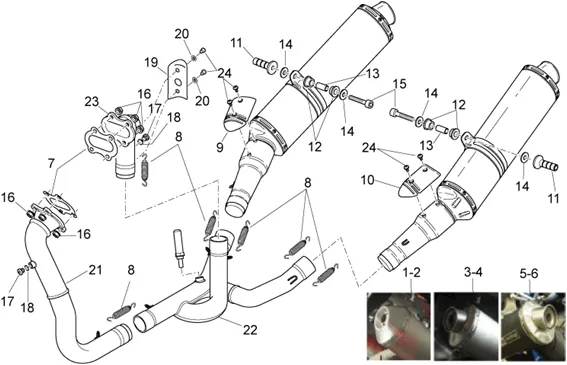

Chassis : 28.32 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.32.PNG)
1 |
856534 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
2 |
856535 - SILENCIEUX G More informationQuantity required : 1 |
||||||
|
3 |
856532 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
4 |
Silencieux G. brillante |
||||||
|
5 |
AP8119875 - SILENZIATORE SCARICO DX More informationQuantity required : 1 |
||||||
|
6 |
AP8119876 - SILENZIATORE SCARICO SX More informationQuantity required : 1 |
||||||
|
7 |
AP8119708 - GUARNIZIONE SCARICO OVALE More informationQuantity required : 2 |
||||||
|
8 |
AP8121170-SPRING More informationQuantity required : 6 |
||||||
|
9 |
AP8127773 - PROTEZIONE SILENZIATORE DX More informationQuantity required : 1 |
||||||
|
10 |
AP8127774-PROTEZIONE SILENZIATORE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/9/3/7/img/51937.jpg)
11 |
BUTOIR/PROTECTOR EXHAUST OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2-AP8158984 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
12 |
BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
13 |
SPACER (19X12X8. 3) OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8121455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
14 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
15 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
16 |
NUT FLANGE (D6) OEM PIAGGIO COMMON A LA RANGE-AP8150506 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/4/5/1/img/46451.jpg)
17 |
SCREW - FOR CO2 EXHAUST SENSOR "PIAGGIO GENUINE PART" APRILIA 400-500 ATLANTIC, 1000 RSV-2, TUONO -AP8119497 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
18 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
19 |
AP8133901 - PROTEZIONE COLLETTORE POSTERIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/1/img/71901.jpg)
20 |
WASHER BRAKE (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150535 More informationQuantity required : 2 |
||||||
|
21 |
AP8119651 - TUBO DI SCARICO PRIMARIO ANT. More informationQuantity required : 1 |
||||||
|
22 |
AP8119877 - COLLETTORE DI SCARICO CENTRALE More informationQuantity required : 1 |
||||||
|
23 |
AP8119878 - TUBO DI SCARICO PRIMARIO POST. More informationQuantity required : 1 |
||||||
|
24 |
AP8150505-SCREW TCEI M4X6 INOX More informationQuantity required : 6 |
