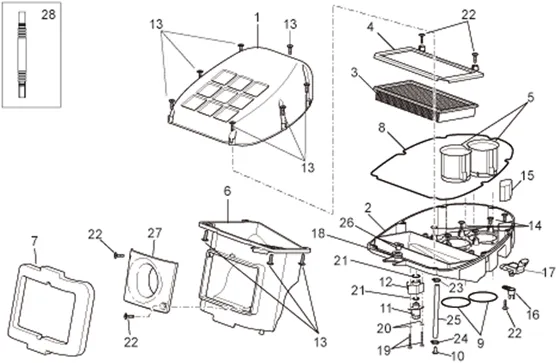

Chassis : 28.29 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.29.PNG)
1 |
AP8158111-COVER CASSA FILTRO More informationQuantity required : 1 |
||||||
|
2 |
AP8158112 - FONDO CASSA FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/2/img/71222_20260205021316.jpg)
3 |
ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4 APRC, TUONO, 450-500 RXV, SXV/MOTO-GUZZI 1400 AUDACE, CALIFORNIA 2012 >, ELDORADO, 1200 GRISO, STELVIO, V85-AP8104329 More informationQuantity required : 1 |
||||||
|
4 |
AP8104335-CORNICE FILTRO More informationQuantity required : 1 |
||||||
|
5 |
AP8106876 - TROMBONCINO DI ASPIRAZIONE More informationQuantity required : 2 |
||||||
|
6 |
AP8158119 - COLLETTORE CASSA FILTRO More informationQuantity required : 1 |
||||||
|
7 |
AP8144456 - GUARNIZIONE COLLETTORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
8 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/7/2/img/49772.JPG)
9 |
O-RING 3231 ORIGNE APRILIA 1000 RSV/TUONO 2004-2009-AP8144581 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
10 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/6/9/1/img/47691.jpg)
11 |
INLET REGULATION ENGINE "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, CAPONORD -AP8124981 More informationQuantity required : 1 |
||||||
|
12 |
AP8149165-VALVE REGLAGE MINI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
13 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
14 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 6 |
||||||
|
15 |
AP8104525-FILTER BLOW-BY More informationQuantity required : 1 |
||||||
|
16 |
AP8144551 - RACCORDO MAP More informationQuantity required : 1 |
||||||
|
17 |
AP0274055 - SENSORE PRESSIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
18 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
|
19 |
AP8150406 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
20 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/2/9/img/56829.jpg)
21 |
O RING OF VALVE DE BODY DE FILTER OEM APRILIA 1000 CAPONORD 2001 > 2007/RSV 2004 > 2008-AP8220095 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
22 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
23 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
24 |
AP8102377-CLAMP More informationQuantity required : 1 |
||||||
|
25 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 1 |
||||||
|
26 |
AP8121023 - RESSORT REGLAGE PHARE More informationQuantity required : 1 |
||||||
|
27 |
AP8106877 - DIAFRAMMA DI RIDUZIONE More informationQuantity required : 1 |
||||||
|
28 |
AP8144605 - TUYAU NORMAFLEX More informationQuantity required : 1 |
