Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009 APRILIA

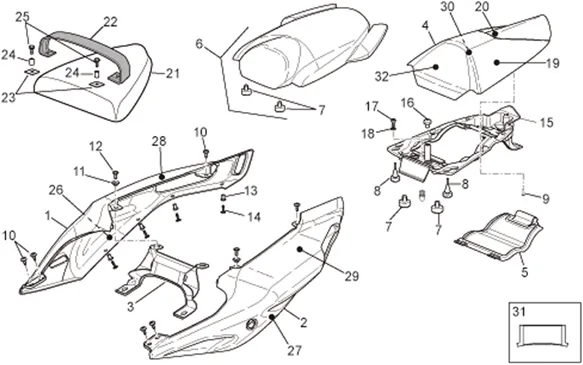

Chassis : 28.18 CARROSSERIE ARRIÉRE - QU.CAR
Carrosserie arriére - Qu.Car
Search
AP8184803 - QUEUE D., ROUGE/NOIR

1
P2R reference P2R reference 55220
Maker reference Maker reference AP8184803

AP8184803 - QUEUE D., ROUGE/NOIR

More information

Quantity required : 1

AP8178783 - CODONE LATERALE DX

1
P2R reference P2R reference 54153
Maker reference Maker reference AP8178783

AP8178783 - CODONE LATERALE DX

More information

Quantity required : 1

AP8179322 - CODONE LAT.DX V.SUNSET RED

1
P2R reference P2R reference 54467
Maker reference Maker reference AP8179322

AP8179322 - CODONE LAT.DX V.SUNSET RED

More information

Quantity required : 1

AP8179425 - CODONE LAT.DX V.NERO DIA.N/DEC

1
P2R reference P2R reference 54522
Maker reference Maker reference AP8179425

AP8179425 - CODONE LAT.DX V.NERO DIA.N/DEC

More information

Quantity required : 1

AP8184127 - REAR COVER

1
P2R reference P2R reference 54908
Maker reference Maker reference AP8184127

AP8184127 - REAR COVER

More information

Quantity required : 1

AP8184330 - QUEUE D, NOIR

1
P2R reference P2R reference 54989
Maker reference Maker reference AP8184330

AP8184330 - QUEUE D, NOIR

More information

Quantity required : 1

AP8184654 - QUEUE, BLANC

1
P2R reference P2R reference 55140
Maker reference Maker reference AP8184654

AP8184654 - QUEUE, BLANC

More information

Quantity required : 1

AP8179073 - CODONE LATERALE SX

2
P2R reference P2R reference 54317
Maker reference Maker reference AP8179073

AP8179073 - CODONE LATERALE SX

More information

Quantity required : 1

AP8179323 - CODONE LAT.SX V.SUNSET RED

2
P2R reference P2R reference 54468
Maker reference Maker reference AP8179323

AP8179323 - CODONE LAT.SX V.SUNSET RED

More information

Quantity required : 1

AP8179420 - CODONE LAT.SX V.NERO DIABLO

2
P2R reference P2R reference 54519
Maker reference Maker reference AP8179420

AP8179420 - CODONE LAT.SX V.NERO DIABLO

More information

Quantity required : 1

AP8179426 - CODONE LAT.SX V.NERO DIA.N/DEC

2
P2R reference P2R reference 54523
Maker reference Maker reference AP8179426

AP8179426 - CODONE LAT.SX V.NERO DIA.N/DEC

More information

Quantity required : 1

AP8184128 - REAR COVER

2
P2R reference P2R reference 54909
Maker reference Maker reference AP8184128

AP8184128 - REAR COVER

More information

Quantity required : 1

AP8184331 - QUEUE D, NOIR

2
P2R reference P2R reference 54990
Maker reference Maker reference AP8184331

AP8184331 - QUEUE D, NOIR

More information

Quantity required : 1

AP8184655 - QUEUE D, BLANC

2
P2R reference P2R reference 55141
Maker reference Maker reference AP8184655

AP8184655 - QUEUE D, BLANC

More information

Quantity required : 1

AP8184804 - QUEUE G., ROUGE/NOIR

2
P2R reference P2R reference 55221
Maker reference Maker reference AP8184804

AP8184804 - QUEUE G., ROUGE/NOIR

More information

Quantity required : 1

AP8184324 - SERRURE

3
P2R reference P2R reference 54985
Maker reference Maker reference AP8184324

AP8184324-LOCK

More information

Quantity required : 1

AP8184360 - SERRURE

3
P2R reference P2R reference 55011
Maker reference Maker reference AP8184360

AP8184360 - SERRURE

More information

Quantity required : 1

AP8184649 - FERMETURE CARENE, BLANC

3
P2R reference P2R reference 55138
Maker reference Maker reference AP8184649

AP8184649 - FERMETURE CARENE, BLANC

More information

Quantity required : 1

AP8179077 - CHIUSURA CENTRALE CODONE

3
P2R reference P2R reference 54320
Maker reference Maker reference AP8179077

AP8179077 - CHIUSURA CENTRALE CODONE

More information

Quantity required : 1

AP8179324 - CHIUSURA CENTR.COD.V.SUN.RED

3
P2R reference P2R reference 54469
Maker reference Maker reference AP8179324

AP8179324 - CHIUSURA CENTR.COD.V.SUN.RED

More information

Quantity required : 1

AP8179421 - CHIUSURA CENTR.COD.V.NERO D.

3
P2R reference P2R reference 54520
Maker reference Maker reference AP8179421

AP8179421 - CHIUSURA CENTR.COD.V.NERO D.

More information

Quantity required : 1

AP8179831 - FERMETURE QUEUE

3
P2R reference P2R reference 54746
Maker reference Maker reference AP8179831

AP8179831 - FERMETURE QUEUE

More information

Quantity required : 1

854975 - KIT COPRISELLINO TUONO ROSSO FLUO

4
P2R reference P2R reference 106569
Maker reference Maker reference 854975

854975 - KIT COPRISELLINO TUONO ROSSO FLUO

More information

Quantity required : 1

KIT COPRISELLINO TUONO BLU DREAM

4
P2R reference P2R reference
Maker reference Maker reference 854976

KIT COPRISELLINO TUONO BLU DREAM

860398 - REAR SADDLE COVER "BIANCO ICE"

4
P2R reference P2R reference 106587
Maker reference Maker reference 860398

860398 - REAR SADDLE COVER "BIANCO ICE"

More information

Quantity required : 1

860399 - REAR SADDLE COVER "ARANCIO CODE"

4
P2R reference P2R reference 106588
Maker reference Maker reference 860399

860399 - REAR SADDLE COVER "ARANCIO CODE"

More information

Quantity required : 1

860400 - REAR SADDLE COVER "SILVER CROWD"

4
P2R reference P2R reference 106589
Maker reference Maker reference 860400

860400 - REAR SADDLE COVER "SILVER CROWD"

More information

Quantity required : 1

AP8179074 - COPRISELLINO

4
P2R reference P2R reference 54318
Maker reference Maker reference AP8179074

AP8179074 - COPRISELLINO

More information

Quantity required : 1

Couvre-selle, rouge

4
P2R reference P2R reference
Maker reference Maker reference AP8179326

Couvre-selle, rouge

AP8179422 - COPRISELLINO V.NERO DIABLO

4
P2R reference P2R reference 54521
Maker reference Maker reference AP8179422

AP8179422 - COPRISELLINO V.NERO DIABLO

More information

Quantity required : 1

AP8179427 - COPRISELLINO V.NERO DIA.N/DEC

4
P2R reference P2R reference 54524
Maker reference Maker reference AP8179427

AP8179427 - COPRISELLINO V.NERO DIA.N/DEC

More information

Quantity required : 1

AP8179472 - COUVRE-SELLE, BLANC

4
P2R reference P2R reference 54549
Maker reference Maker reference AP8179472

AP8179472 - COUVRE-SELLE, BLANC

More information

Quantity required : 1

AP8179480 - COPRISELLINO V.NERO AP.S/DEC

4
P2R reference P2R reference 54550
Maker reference Maker reference AP8179480

AP8179480 - COPRISELLINO V.NERO AP.S/DEC

More information

Quantity required : 1

854974 - KIT COPRISELLINO TUONO NERO DIABLO

4
P2R reference P2R reference 106568
Maker reference Maker reference 854974

854974 - KIT COPRISELLINO TUONO NERO DIABLO

More information

Quantity required : 1

AP8158138 - SPORTELLINO COPRISELLINO

5
P2R reference P2R reference 51524
Maker reference Maker reference AP8158138

AP8158138-SPORTELLINO COPRISELLINO

More information

Quantity required : 1

AP8129442 - SELLA PASSEGGERO

6
P2R reference P2R reference 48581
Maker reference Maker reference AP8129442

AP8129442 - SELLA PASSEGGERO

More information

Quantity required : 1

AP8129466 - SELLE

6
P2R reference P2R reference 48596
Maker reference Maker reference AP8129466

AP8129466 - SELLE

More information

Quantity required : 1

AP8129519 - SELLE PASSAGER NOIRE

6
P2R reference P2R reference 48635
Maker reference Maker reference AP8129519

AP8129519 - SELLE PASSAGER NOIRE

More information

Quantity required : 1

BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349

7
P2R reference P2R reference 72281
Maker reference Maker reference AP8220349

BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349

More information

Quantity required : 4

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

8
P2R reference P2R reference 72275
Maker reference Maker reference AP8220238

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

More information

Quantity required : 2

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

9
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 7

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

10
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 6

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

10
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 6

AP8221145 - "DOUILLE EN ""T"" *"

11
P2R reference P2R reference 72298
Maker reference Maker reference AP8221145

AP8221145-" BUSH EN " " T " " * "

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

12
P2R reference P2R reference 72330
Maker reference Maker reference AP8224470

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

More information

Quantity required : 2

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

13
P2R reference P2R reference 71773
Maker reference Maker reference AP8144616

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

More information

Quantity required : 8

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

14
P2R reference P2R reference 71769
Maker reference Maker reference AP8144563

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

More information

Quantity required : 8

AP8179075 - BASE COPRISELLINO

15
P2R reference P2R reference 54319
Maker reference Maker reference AP8179075

AP8179075 - BASE COPRISELLINO

More information

Quantity required : 1

BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081

16
P2R reference P2R reference 71746
Maker reference Maker reference AP8144081

BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081

More information

Quantity required : 1

SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043

17
P2R reference P2R reference 71910
Maker reference Maker reference AP8152043

SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043

More information

Quantity required : 1

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

18
P2R reference P2R reference 71804
Maker reference Maker reference AP8150011

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

More information

Quantity required : 1

852783 - PLAQUETTE

19
P2R reference P2R reference 39622
Maker reference Maker reference 852783

852783 - PLAQUETTE

More information

Quantity required : 1

852820 - PLAQUETTE

19
P2R reference P2R reference 39631
Maker reference Maker reference 852820

852820 - PLAQUETTE

More information

Quantity required : 1

860212 - DECALCO

19
P2R reference P2R reference 40794
Maker reference Maker reference 860212

860212-DECAL

More information

Quantity required : 1

890915 - DECALCO

19
P2R reference P2R reference 41812
Maker reference Maker reference 890915

890915 - DECALCO

More information

Quantity required : 1

852585 - PLAQUETTE

19
P2R reference P2R reference 39596
Maker reference Maker reference 852585

852585 - PLAQUETTE

More information

Quantity required : 1

860213 - DECALCO

20
P2R reference P2R reference 40795
Maker reference Maker reference 860213

860213-DECAL

More information

Quantity required : 1

AP8166737 - DEC.APRILIA COPRISELLINO

20
P2R reference P2R reference 52671
Maker reference Maker reference AP8166737

AP8166737-DEC. APRILIA COPRISELLINO

More information

Quantity required : 1

AP8166851 - DECALCO APRILIA COPRISELLINO

20
P2R reference P2R reference 52705
Maker reference Maker reference AP8166851

AP8166851-DECAL APRILIA COPRISELLINO

More information

Quantity required : 1

852583 - PLAQUETTE

20
P2R reference P2R reference 39594
Maker reference Maker reference 852583

852583 - PLAQUETTE

More information

Quantity required : 1

854560 - PLAQUETTE

20
P2R reference P2R reference 39846
Maker reference Maker reference 854560

854560 - PLAQUETTE

More information

Quantity required : 1

SEAT PASSENGER OEM PIAGGIO APRILIA 1000 RSV-2, TUONO BLACK-AP8129467

21
P2R reference P2R reference 48597
Maker reference Maker reference AP8129467

SEAT PASSENGER OEM PIAGGIO APRILIA 1000 RSV-2, TUONO BLACK-AP8129467

More information

Quantity required : 1

AP8129474 - SELLA PASSEGGERO ROSSA

21
P2R reference P2R reference 48601
Maker reference Maker reference AP8129474

AP8129474 - SELLA PASSEGGERO ROSSA

More information

Quantity required : 1

AP8129504 - SELLE

21
P2R reference P2R reference 48626
Maker reference Maker reference AP8129504

AP8129504 - SELLE

More information

Quantity required : 1

AP8129514 - SELLE PILOTE ROUGE

21
P2R reference P2R reference 48630
Maker reference Maker reference AP8129514

AP8129514 - SELLE PILOTE ROUGE

More information

Quantity required : 1

AP8129475 - CINGHIA PASSEGGERO ROSSA

22
P2R reference P2R reference 48602
Maker reference Maker reference AP8129475

AP8129475-CINGHIA PASSEGGERO ROSSA

More information

Quantity required : 1

AP8129505 - COURROIE

22
P2R reference P2R reference 71641
Maker reference Maker reference AP8129505

AP8129505-BELT

More information

Quantity required : 1

AP8129515 - COURROIE PASS.ROUG.

22
P2R reference P2R reference 48631
Maker reference Maker reference AP8129515

AP8129515-BELT PASS. ROUG.

More information

Quantity required : 1

AP8184806 - COURROIE PASSAGER

22
P2R reference P2R reference 55222
Maker reference Maker reference AP8184806

AP8184806 - COURROIE PASSAGER

More information

Quantity required : 1

AP8129468 - CINGHIA SELLINO PASSEGGERO

22
P2R reference P2R reference 48598
Maker reference Maker reference AP8129468

AP8129468-CINGHIA SELLINO PASSEGGERO

More information

Quantity required : 1

AP8134654 - PLAQUETTE

23
P2R reference P2R reference 48990
Maker reference Maker reference AP8134654

AP8134654 - PLAQUETTE

More information

Quantity required : 2

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253

24
P2R reference P2R reference 71390
Maker reference Maker reference AP8120253

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253

More information

Quantity required : 2

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

25
P2R reference P2R reference 71944
Maker reference Maker reference AP8152281

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

More information

Quantity required : 2

852579 - DECALCOMANIE

26
P2R reference P2R reference 39590
Maker reference Maker reference 852579

852579 - DECALCOMANIE

More information

Quantity required : 1

AP8166764 - DEC.TUONO ERRE CODONE LAT.DX

26
P2R reference P2R reference 52684
Maker reference Maker reference AP8166764

AP8166764 - DEC.TUONO ERRE CODONE LAT.DX

More information

Quantity required : 1

852580 - PLAQUETTE

27
P2R reference P2R reference 39591
Maker reference Maker reference 852580

852580-PLATE

More information

Quantity required : 1

AP8166765 - DECALCO

27
P2R reference P2R reference 52685
Maker reference Maker reference AP8166765

AP8166765-DECAL

More information

Quantity required : 1

DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" APRILIA 1000 TUONO V2 2006>2009 -852581-

28
P2R reference P2R reference 39592
Maker reference Maker reference 852581

DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" APRILIA 1000 TUONO V2 2006>2009 -852581-

More information

Quantity required : 1

DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" APRILIA 1000 TUONO V2 2006>2009 -852780-

28
P2R reference P2R reference 39619
Maker reference Maker reference 852780

DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" APRILIA 1000 TUONO V2 2006>2009 -852780-

More information

Quantity required : 1

852801 - PLAQUETTE

28
P2R reference P2R reference 39625
Maker reference Maker reference 852801

852801 - PLAQUETTE

More information

Quantity required : 1

852817 - PLAQUETTE DROITE

28
P2R reference P2R reference 39628
Maker reference Maker reference 852817

852817-PLATE RIGHT

More information

Quantity required : 1

856249 - PLAQUETTE

28
P2R reference P2R reference 40066
Maker reference Maker reference 856249

856249 - PLAQUETTE

More information

Quantity required : 1

860209 - RH DECALCO

28
P2R reference P2R reference 40791
Maker reference Maker reference 860209

860209 - RH DECALCO

More information

Quantity required : 1

860218 - DECALCO

28
P2R reference P2R reference 40797
Maker reference Maker reference 860218

860218 - DECALCO

More information

Quantity required : 1

860220 - DECALCO

28
P2R reference P2R reference 40799
Maker reference Maker reference 860220

860220 - DECALCO

More information

Quantity required : 1

890912 - DECALCO

28
P2R reference P2R reference 41809
Maker reference Maker reference 890912

890912 - DECALCO

More information

Quantity required : 1

DECAL- LEFT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1000 TUONO V2 2006>2009 -852781

29
P2R reference P2R reference 39620
Maker reference Maker reference 852781

DECAL- LEFT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1000 TUONO V2 2006>2009 -852781

More information

Quantity required : 1

852802 - PLAQUETTE

29
P2R reference P2R reference 39626
Maker reference Maker reference 852802

852802 - PLAQUETTE

More information

Quantity required : 1

852818 - PLAQUETTE GAUCHE

29
P2R reference P2R reference 39629
Maker reference Maker reference 852818

852818 - PLAQUETTE GAUCHE

More information

Quantity required : 1

856250 - PLAQUETTE

29
P2R reference P2R reference 40067
Maker reference Maker reference 856250

856250-PLATE

More information

Quantity required : 1

860210 - DECALCO

29
P2R reference P2R reference 40792
Maker reference Maker reference 860210

860210 - DECALCO

More information

Quantity required : 1

852582 - PLAQUETTE

29
P2R reference P2R reference 39593
Maker reference Maker reference 852582

852582 - PLAQUETTE

More information

Quantity required : 1

860219 - DECALCO

29
P2R reference P2R reference 40798
Maker reference Maker reference 860219

860219 - DECALCO

More information

Quantity required : 1

860221 - DECALCO

29
P2R reference P2R reference 40800
Maker reference Maker reference 860221

860221 - DECALCO

More information

Quantity required : 1

890913 - DECALCO

29
P2R reference P2R reference 41810
Maker reference Maker reference 890913

890913 - DECALCO

More information

Quantity required : 1

852782 - PLAQUETTE

30
P2R reference P2R reference 39621
Maker reference Maker reference 852782

852782 - PLAQUETTE

More information

Quantity required : 1

852819 - PLAQUETTE

30
P2R reference P2R reference 39630
Maker reference Maker reference 852819

852819 - PLAQUETTE

More information

Quantity required : 1

860211 - DECALCO

30
P2R reference P2R reference 40793
Maker reference Maker reference 860211

860211-DECAL

More information

Quantity required : 1

890914 - DECALCO

30
P2R reference P2R reference 41811
Maker reference Maker reference 890914

890914 - DECALCO

More information

Quantity required : 1

852584 - PLAQUETTE

30
P2R reference P2R reference 39595
Maker reference Maker reference 852584

852584-PLATE

More information

Quantity required : 1

890916 - DECALCO

31
P2R reference P2R reference 41813
Maker reference Maker reference 890916

890916-DECAL

More information

Quantity required : 1

893702 - SEAT BACK

32
P2R reference P2R reference 41995
Maker reference Maker reference 893702

893702 - SEAT BACK

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
