Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009 APRILIA

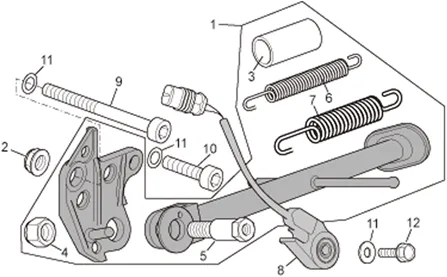

Chassis : 28.04 BÉQUILLE
Béquille
Search
AP8145055 - CAVALLETTO COMPLETO

1
P2R reference P2R reference 49913
Maker reference Maker reference AP8145055

AP8145055 - CAVALLETTO COMPLETO

More information

Quantity required : 1

AP8146732 - ASSIEME CAVALLETTO LAT.

1
P2R reference P2R reference 50095
Maker reference Maker reference AP8146732

AP8146732 - ASSIEME CAVALLETTO LAT.

More information

Quantity required : 1

AP8146944 - CAVALLETTO COMPLETO

1
P2R reference P2R reference 50183
Maker reference Maker reference AP8146944

AP8146944 - CAVALLETTO COMPLETO

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

2
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

More information

Quantity required : 1

PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524

3
P2R reference P2R reference 71185
Maker reference Maker reference AP8102524

PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524

More information

Quantity required : 1

AP8150480 - ECROU AUTOFR. BAS

4
P2R reference P2R reference 50893
Maker reference Maker reference AP8150480

AP8150480-NUT AUTOFR. BAS

More information

Quantity required : 1

NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001

4
P2R reference P2R reference 71907
Maker reference Maker reference AP8152001

NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001

More information

Quantity required : 1

AP8121375 - VIS FIX. BEQUILLE;

5
P2R reference P2R reference 71461
Maker reference Maker reference AP8121375

AP8121375 - VIS FIX. BEQUILLE;

More information

Quantity required : 1

AP8121429 - VIS FIX. BEQUILLE

5
P2R reference P2R reference 71464
Maker reference Maker reference AP8121429

AP8121429-SCREW FIX. STAND

More information

Quantity required : 1

SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014

6
P2R reference P2R reference 71426
Maker reference Maker reference AP8121014

SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014

More information

Quantity required : 1

SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197

7
P2R reference P2R reference 72302
Maker reference Maker reference AP8221197

SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197

More information

Quantity required : 1

STAND SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1100 BREVA, GRISO -854889

8
P2R reference P2R reference 69688
Maker reference Maker reference 854889

STAND SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1100 BREVA, GRISO -854889

More information

Quantity required : 1

AP8152440 - VITE TE FLANGIATA M10 X 90

9
P2R reference P2R reference 51017
Maker reference Maker reference AP8152440

AP8152440-SCREW TE FLANGIATA M10 X 90

More information

Quantity required : 1

AP8150196 - VIS

10
P2R reference P2R reference 71837
Maker reference Maker reference AP8150196

AP8150196-SCREW

More information

Quantity required : 1

WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292

11
P2R reference P2R reference 71856
Maker reference Maker reference AP8150292

WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292

More information

Quantity required : 2

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

12
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 1
