Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

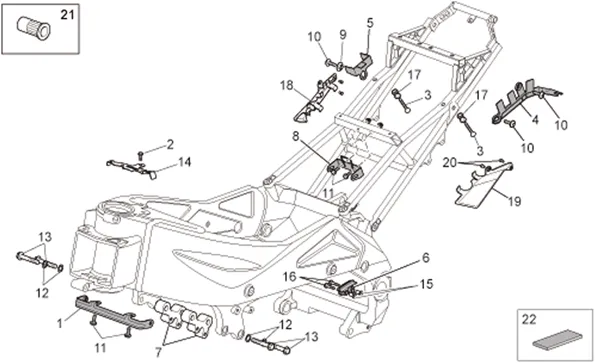

Chassis : 28.02 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.02.PNG)
1 |
AP8134775-BRACKET SUP. RADIATORE ACQUA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/2/img/71892.jpg)
3 |
SCREW BTR HEAD FRAISEE (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8150468 More informationQuantity required : 2 |
||||||
|
4 |
AP8134854-PIASTRINA SUPP. RELE' More informationQuantity required : 1 |
||||||
|
5 |
AP8134851-PIASTRINA SUPP. RELE'AVVIAMENTO More informationQuantity required : 1 |
||||||
|
6 |
AP8158669 - PATTINO CATENA INF. More informationQuantity required : 1 |
||||||
|
7 |
AP8134850-SPACER FIX. ENGINE More informationQuantity required : 2 |
||||||
|
8 |
AP8134831-ATTACCO POST. TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
9 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
10 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
12 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 4 |
||||||
|
13 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 4 |
||||||
|
14 |
AP8161058 - GUIDACAVI SERBATOIO More informationQuantity required : 1 |
||||||
|
15 |
AP8121741-BUSH PANEL DE EDGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
16 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/8/img/71498.jpg)
17 |
BUSH OEM MOPED SWINGARM OEM APRILIA COMMON A LA RANGE-AP8121890 More informationQuantity required : 2 |
||||||
|
18 |
AP8179226 - COPERCHIO REGGISELLA DX More informationQuantity required : 1 |
||||||
|
19 |
AP8179227-COVER REGGISELLA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
20 |
RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
21 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
22 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 2 |
