Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

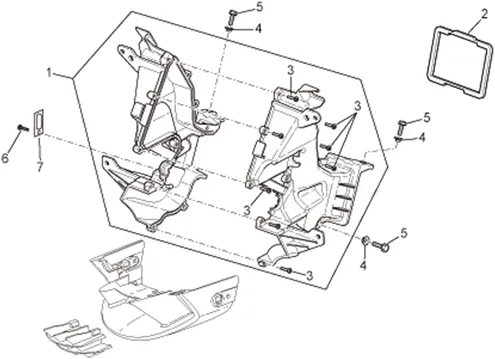

Chassis : 28.11 CARROSSERIE AV. - CONVOYEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.11.PNG)
1 |
AP8179146-CONVOGLIATORE COMPLETO * More informationQuantity required : 1 |
||||||
|
2 |
AP8144457 - GUARNIZIONE CONVOGLIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
3 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
4 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
5 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
|
7 |
AP8134437-PLATE More informationQuantity required : 1 |
