Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009 APRILIA

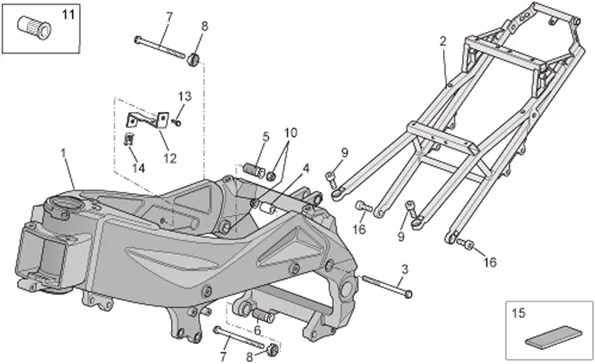

Chassis : 28.01 CHASSIS I
Chassis I
Search
AP8145075 - CHASSIS

1
P2R reference P2R reference 49918
Maker reference Maker reference AP8145075

AP8145075 - CHASSIS

More information

Quantity required : 1

AP8146974 - TELAIO FINITO

1
P2R reference P2R reference 50204
Maker reference Maker reference AP8146974

AP8146974 - TELAIO FINITO

More information

Quantity required : 1

AP8184394 - CHASSIS

1
P2R reference P2R reference 55029
Maker reference Maker reference AP8184394

AP8184394 - CHASSIS

More information

Quantity required : 1

AP8146500 - REGGISELLA BIPOSTO

2
P2R reference P2R reference 50023
Maker reference Maker reference AP8146500

AP8146500 - REGGISELLA BIPOSTO

More information

Quantity required : 1

AP8152317 - VIS BRIDE

3
P2R reference P2R reference 50980
Maker reference Maker reference AP8152317

AP8152317-SCREW FLANGE

More information

Quantity required : 1

AP8121597 - DISTANZIALE SUP.MOTORE

4
P2R reference P2R reference 46886
Maker reference Maker reference AP8121597

AP8121597-SPACER SUP. MOTORE

More information

Quantity required : 1

AP8121996 - DOUILLE DE REGLAGE SUP.;

5
P2R reference P2R reference 71505
Maker reference Maker reference AP8121996

AP8121996-BUSH DE REGLAGE SUP.

More information

Quantity required : 1

AP8121997 - DOUILLE DE REGLAGE INF.;

6
P2R reference P2R reference 46977
Maker reference Maker reference AP8121997

AP8121997-BUSH DE REGLAGE INF.

More information

Quantity required : 1

AP8152317 - VIS BRIDE

7
P2R reference P2R reference 50980
Maker reference Maker reference AP8152317

AP8152317-SCREW FLANGE

More information

Quantity required : 1

AP8121995 - BAGUE FIX. MOTEUR;

8
P2R reference P2R reference 71504
Maker reference Maker reference AP8121995

AP8121995-BUSH FIX. ENGINE

More information

Quantity required : 2

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469

9
P2R reference P2R reference 50887
Maker reference Maker reference AP8150469

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

10
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

More information

Quantity required : 4

RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544

11
P2R reference P2R reference 71187
Maker reference Maker reference AP8102544

RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544

More information

Quantity required : 12

AP8179150 - SUPPORTO VASO ESP.

12
P2R reference P2R reference 54356
Maker reference Maker reference AP8179150

AP8179150-BRACKET VASO ESP.

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

13
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

AP8117033-ADHESIVE SPONGE

15
P2R reference P2R reference 46214
Maker reference Maker reference AP8117033

AP8117033-ADHESIVE SPONGE

More information

Quantity required : 1

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469

16
P2R reference P2R reference 50887
Maker reference Maker reference AP8150469

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469

More information

Quantity required : 2

AP8150542 - VITE TCC M10 X 30

16
P2R reference P2R reference 50922
Maker reference Maker reference AP8150542

AP8150542-SCREW TCC M10 X 30

More information

Quantity required : 2
