Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

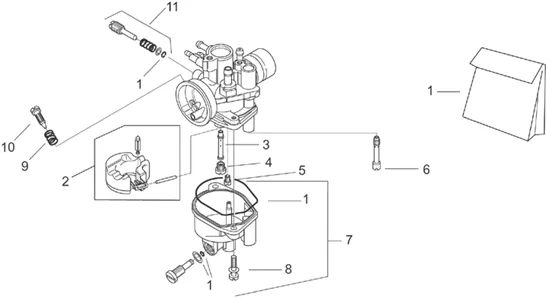

Moteur : 29.37 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_29.37.PNG)
1 |
AP8206886 - SACHET JOINTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
2 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
|
3 |
AP8206981 - GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/7/img/71247.jpg)
4 |
MAIN JET Ø 120 MAXIMUM "PIAGGIO GENUINE PART" APRILIA 50-125 RS 1999>2005 -AP8106092 More informationQuantity required : 1 |
||||||
|
4 |
CM101725-GICL. MAXI More informationQuantity required : 1 |
||||||
|
4 |
AP8276024 - GETTO MASSIMO 100 More informationQuantity required : 1 |
||||||
|
4 |
CM101727 - GICL.MAXI More informationQuantity required : 1 |
||||||
|
5 |
Gicleur minimum |
||||||
|
6 |
AP8206982-JET DEMARRAGE More informationQuantity required : 1 |
||||||
|
7 |
AP8206889 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
8 |
SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862 More informationQuantity required : 1 |
||||||
|
9 |
Res.vis rég.air mini |
||||||
|
10 |
Vis rég.air minimum |
||||||
|
11 |
AP8106820-KIT SCREW REG. VALVE GAS More informationQuantity required : 1 |
