Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

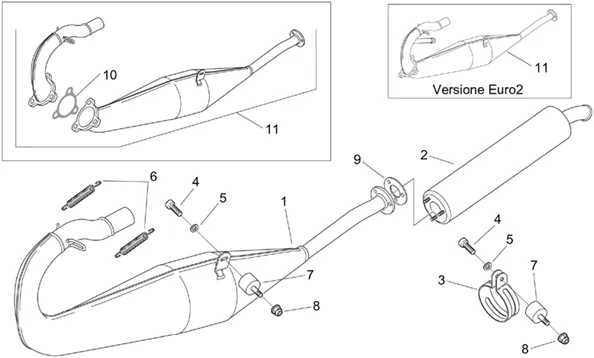

Chassis : 28.24 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.24.PNG)
1 |
Pot catalytique |
||||||
|
2 |
AP8219546 - SILENCIEUX; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/6/9/img/45169.jpg)
3 |
CLAMP DE SILENCER EXHAUST PIAGGIO APRILIA 50-125 RS 1999 > 2005-AP8102432 More informationQuantity required : 1 |
||||||
|
4 |
AP8152112-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
5 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
6 |
SPRING EXHAUST OEM APRILIA 50-125 COMMON A LA RANGE 2005 <-AP8101259 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/8/5/img/46685.jpg)
7 |
SILENTBLOC FOR EXHAUST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -AP8120910- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/8/img/46658.jpg)
9 |
GASKET SILENCER OEM PIAGGIO 125 RS APRILIA 2010 <-AP8120812 More informationQuantity required : 1 |
||||||
|
10 |
Joint bride pot d'échappement |
||||||
|
11 |
AP8219578 - POT ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
11 |
AP8219610 - MARMITTA E.2 More informationQuantity required : 1 |
||||||
|
11 |
AP8219611 - MARMITTA CAT. More informationQuantity required : 1 |
