Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

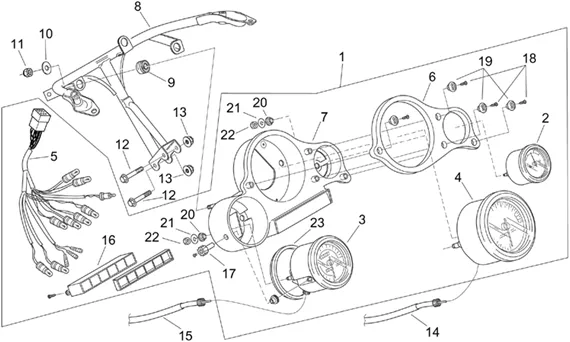

Chassis : 28.14 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/8/3/img/57383.jpg)
1 |
AP8224411 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
2 |
AP8224122 - THERMOMETRE EAU; More informationQuantity required : 1 |
||||||
|
3 |
Compteur kilométrique |
||||||
|
4 |
AP8224120 - COMPTE-TOURS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/6/1/img/57261.jpg)
5 |
WIRING INSTRUMENT CLUSTER + LAMPES OEM PIAGGIO APRILIA 50 RS, TUONO 1999 > 2004-AP8224123 More informationQuantity required : 1 |
||||||
|
6 |
AP8224124 - REMBOURRAGE POUR TACHYMETRE; More informationQuantity required : 1 |
||||||
|
7 |
AP8224125 - BASE SUPPORT INSTRUMENTS; More informationQuantity required : 1 |
||||||
|
8 |
AP8235152 - TELAIETTO PORTASTRUM.SABB.CAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
9 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
10 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
12 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/6/8/img/56568.jpg)
14 |
TRANSMISSION CABLE FOR RPM GAUGE "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, TUONO 2003>2004 -AP8214179 More informationQuantity required : 1 |
||||||
|
15 |
AP8214226-CABLE INSTRUMENT CLUSTER 50 TUONO More informationQuantity required : 1 |
||||||
|
16 |
AP8220275 - BO?TIER TEMOINS More informationQuantity required : 1 |
||||||
|
17 |
AP8102217-POUSSOIR RAZ * More informationQuantity required : 1 |
||||||
|
18 |
Vis; |
||||||
|
19 |
AP8102216 - DOUILLE FIXATION REMBOURRAGE More informationQuantity required : 4 |
||||||
|
20 |
AP8120760-RUBBER More informationQuantity required : 5 |
||||||
|
21 |
Rondelle; |
||||||
|
22 |
Ecrou; |
||||||
|
23 |
AP8120759 - JOINT TACHYMETRE More informationQuantity required : 1 |
