Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

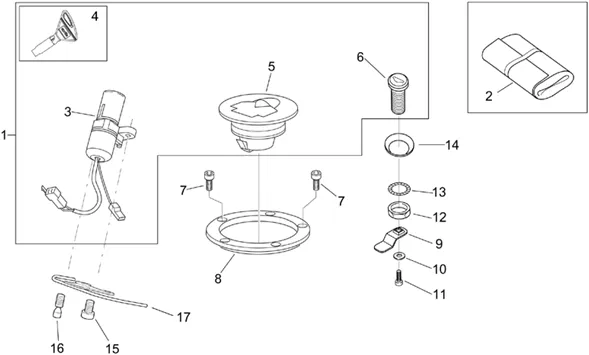

Chassis : 28.32 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.32.PNG)
1 |
Kit serrures |
||||||
|
2 |
AP8202097 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
3 |
AP8224570 - BLOCCHETTO AVVIAMENTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
4 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 50-125 RS, SX, RX-AP8140710 More informationQuantity required : 1 |
||||||
|
5 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
6 |
AP8202379-SERRATURA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
7 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 5 |
||||||
|
8 |
AP8102361 - BAGUE BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/2/0/img/49120.jpg)
9 |
PLATINE LATCH DE SEAT OEM PIAGGIO APRILIA 50 RS 1993 > 2005-AP8135260 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
10 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/0/img/97090.jpg)
11 |
SCREW BTR (6X8) OEM PIAGGIO COMMON A LA RANGE-AP8152123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
12 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
13 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
|
14 |
AP8229207 - CUVETTE SERR.SELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
15 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
16 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
|
17 |
AP8146456 - ARCHET GUIDE-CABLES; More informationQuantity required : 1 |
